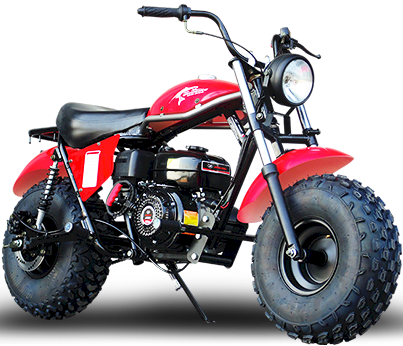

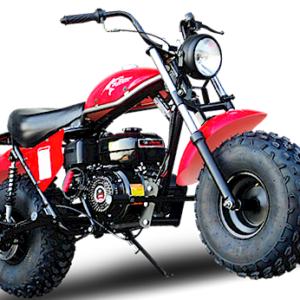

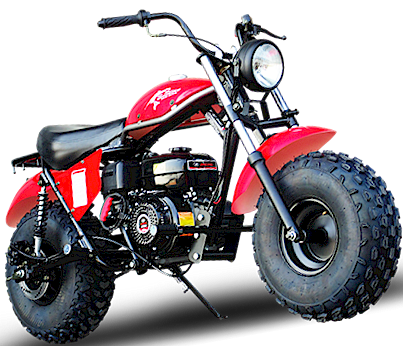

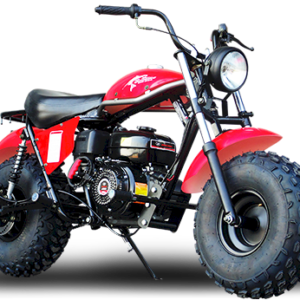

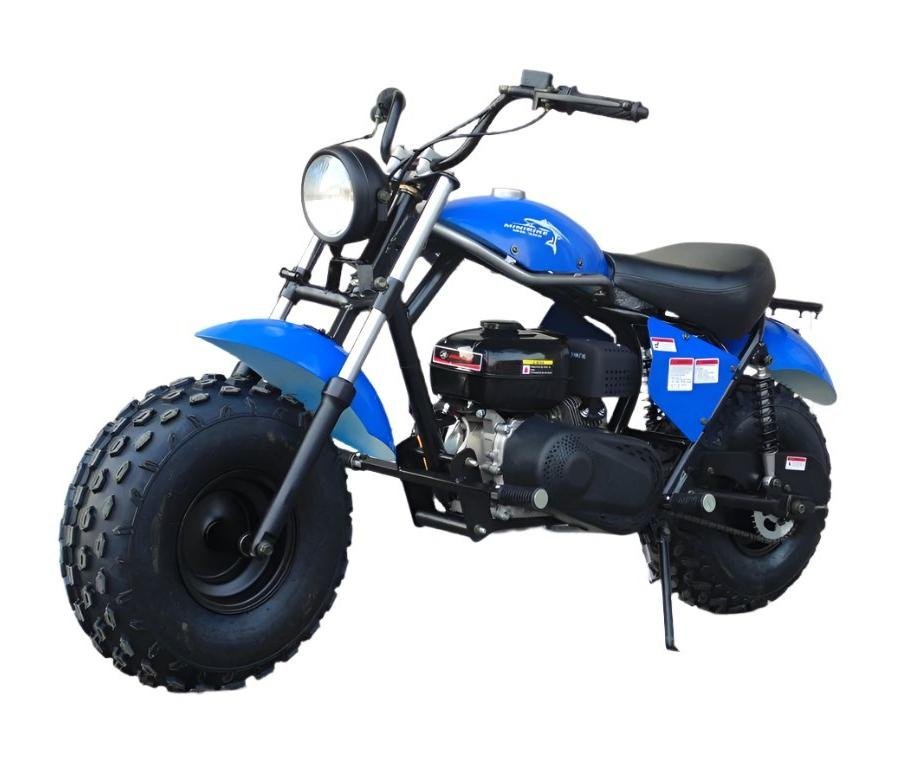

The Monster Dog II Mini Bike is an ideal choice for off-road adventures. Powered by a 208cc / 7.5hp engine, it can reach speeds of up to 40mph, with the torque converter and disc brake providing additional control and safety. Its high strength steel frame, front and rear suspension and wide, comfortable seat can accommodate up to 250 lbs. Set yourself apart with the stylish and reliable Monster Dog II Mini Bike.
Specifications
Engine System
Engine: 208cc 7.5hp Single Cylinder, 4-Stroke, OHV
Starting: Recoil Cord
Spark Plug Type: Torch – F7RTC
Cooling: Air cooled
Bore and Stroke: 68 x 54mm
Compression Ratio: 8.5:1
Rated Power: 196cc 6.5hp
Rated Torque: 7. 3lbsf.ft@ 2500rpm
Idle Speed: 1440 +/- 150 rpm
Top Speed: 35-40mph (39km/h)
Fuel type: Unleaded 87 octane
Oil Capacity: .53qt. (.5L)
Oil Type: SAE 10W-40
Lights: Front Headlight Continuously on
Drive Type: Chain Drive
Gear Ratio: Centrifugal clutch
Shock Type Front: Fork shocks
Shock Type Rear: Hydraulic
Tire Type: Low pressure tires
Rear Brakes: Hydraulic Disc
Front Tire Size: AT19x7-8
Rear Tire Size: AT19x7-8
Dimensions
Length: 66.14in
Height: 38.58in.
Width: 31.5in.
Wheelbase: 45.28in.
Vehicle Wt.: 167.5lbs
Weight Cap.: 250lbs
Ground Clearance: 6.7in
Gas Tank Capacity: 0.95gal.
Download Product Brochure
Assembly Guide
Owner’s Manual
Parts Manual
