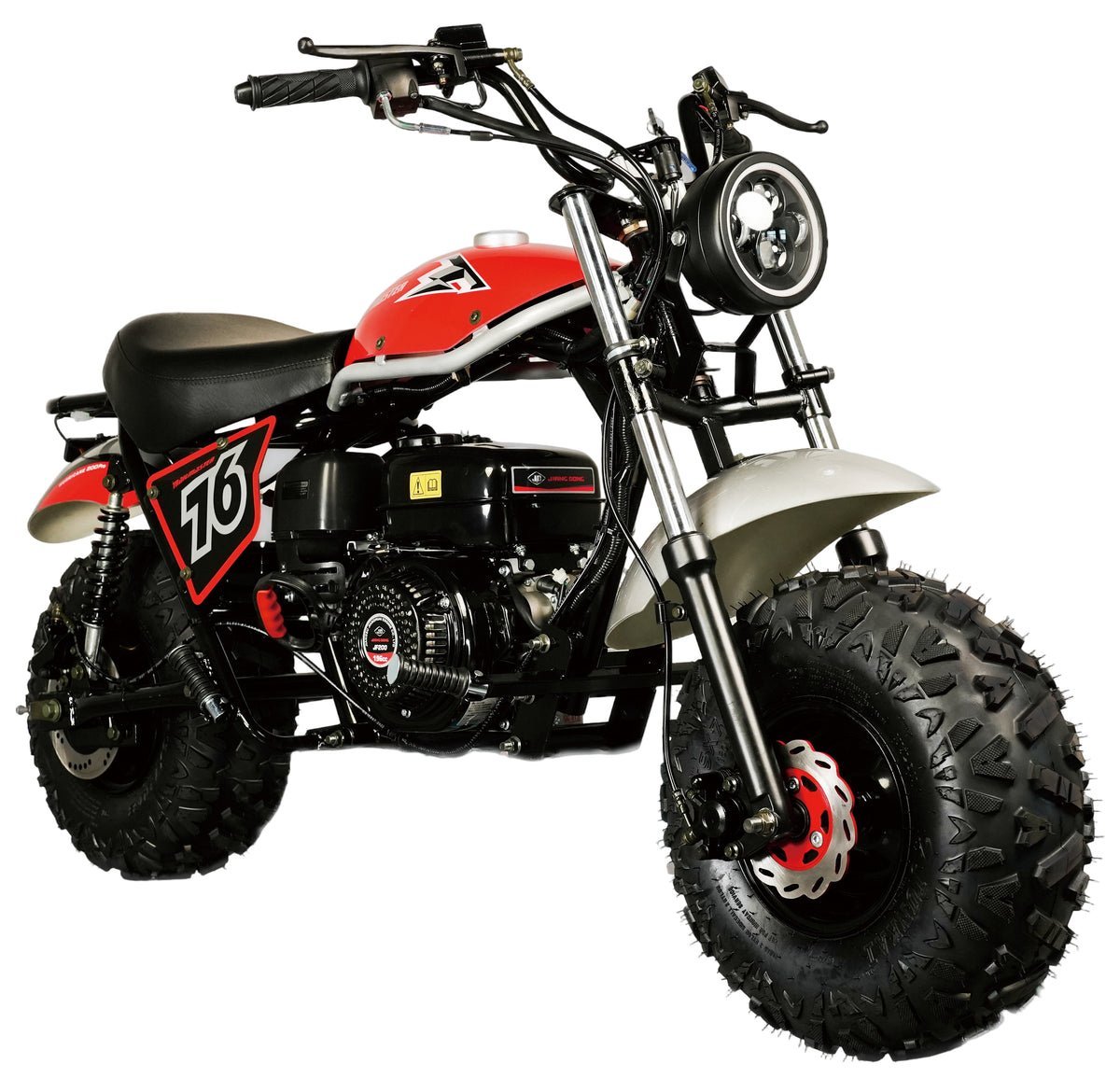

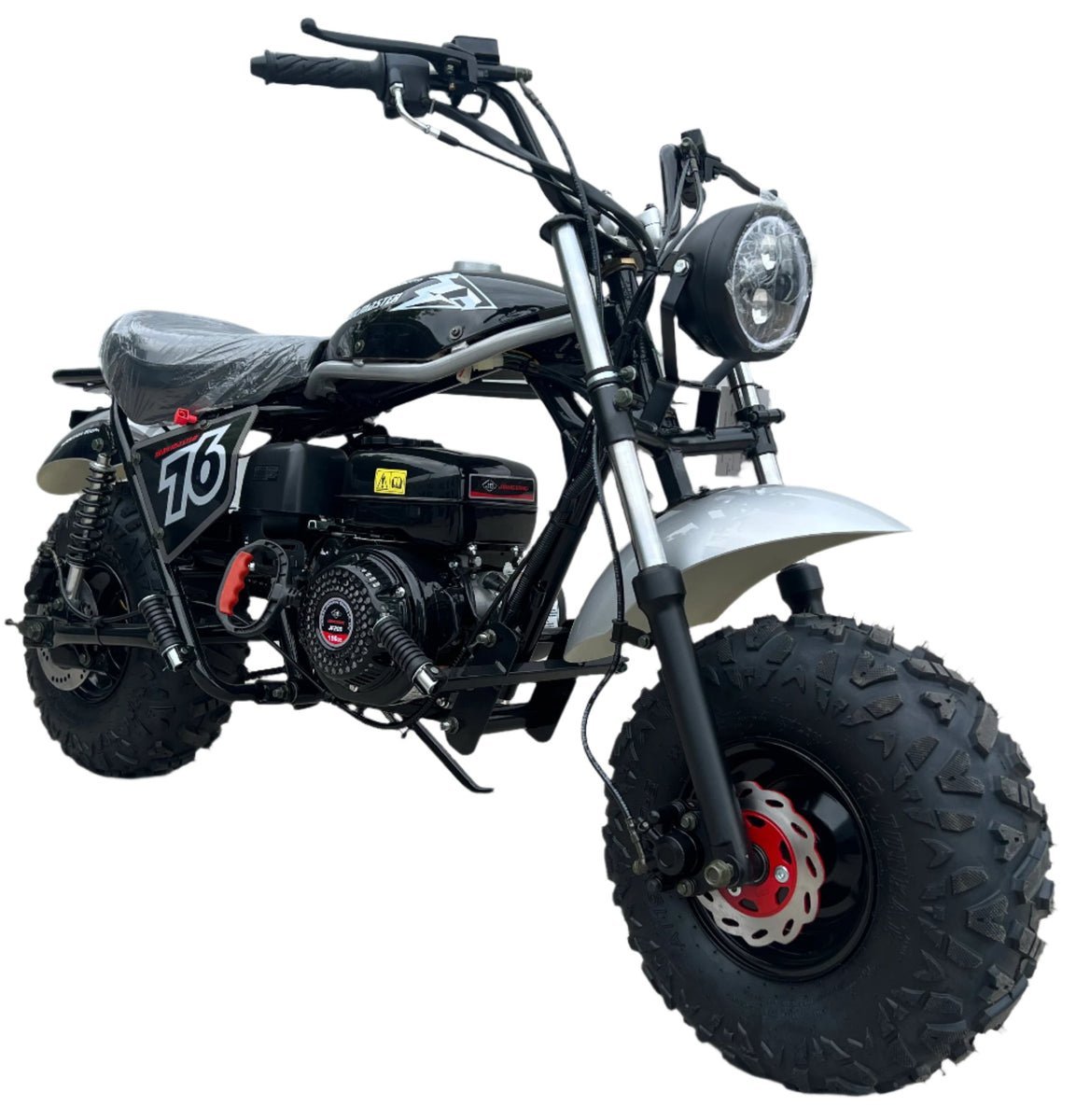

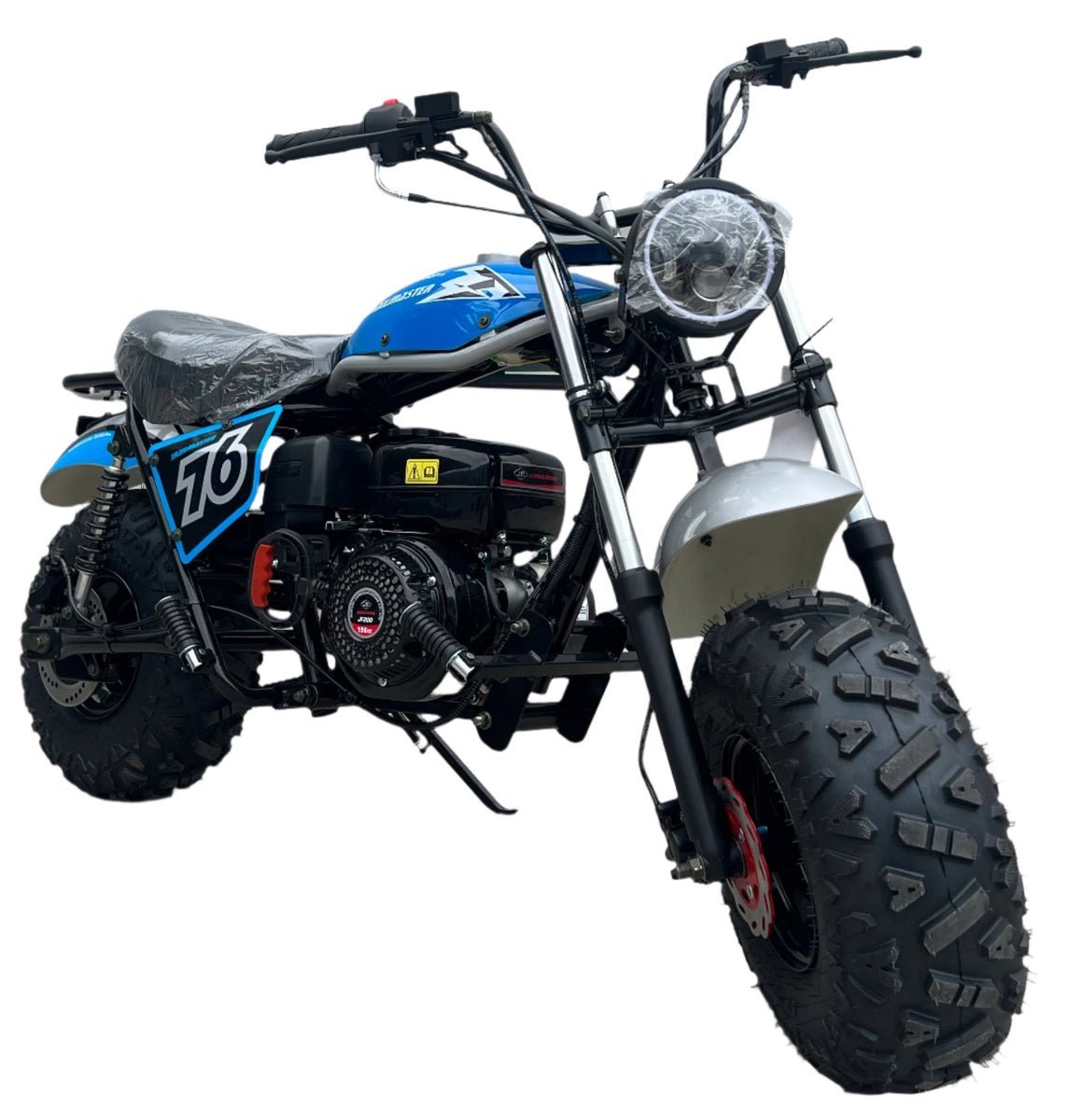

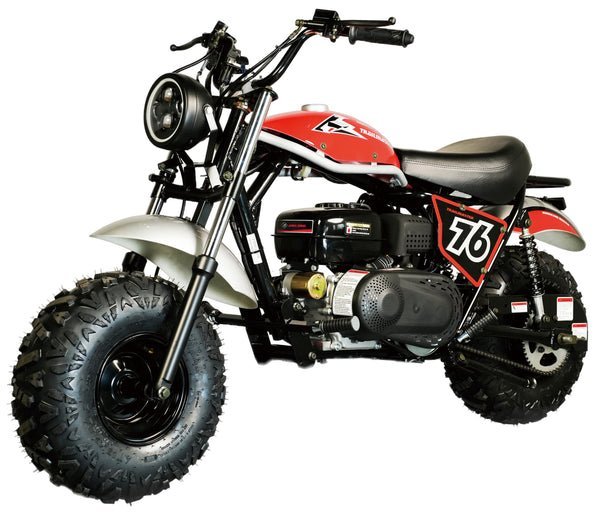

with Electric Start, Torque Converter, Dual Disc Brakes, Front & Rear Suspension, LED Headlight, reliable 196cc 6.5hp engine and rugged 19″ tires and reaches speeds of up to 40mph.
New Features
Electric Start
LED Headlight
Front & Rear Hydraulic Disc Brakes
Specifications
Engine System
Engine: Single Cylinder, 196cc 6.5hp, 4‐Stroke, OHV
Starting: Electric with pull backup
Spark Plug Type: Torch ‐ F7RTC
Cooling: Air cooled
Bore and Stroke: 68 x 54mm
Compression Ratio: 8.5:1
Rated Power: 3.8kw @ 3600rpm
Rated Torque: 10Nm @ 2500rpm
Idle Speed: 1440 +/‐ 150 rpm
Top Speed: 35-40mph
Fuel type: Unleaded 87 octane
Oil Capacity: .53qt. (.5L)
Oil Type: SAE 10W‐40
Size Data
Lights: Front Headlight Continuously on
Drive Type: Chain Drive
Gear Ratio: Centrifugal clutch
Shock Type Front: Fork shocks
Shock Type Rear: Hydraulic
Tire Type: Low pressure tires
Rear Brakes: Drum
Front Tire Size: AT19x7‐8
Rear Tire Size: AT19x7‐8
Frame/Suspension/Brake System
Length: 66.14in (1680mm)
Height: 38.58in. (980mm)
Width: 31.5in. (800mm)
Wheelbase: 45.28in. (1150mm)
Vehicle Wt.: 167.5lbs (76kg)
Weight Cap.: 250lbs (91kg)
Ground Clearance: 6.7in (170mm)
Gas Tank Capacity: 0.95gal.(4.2L)
