196cc 6.5hp, GX200 compatible engine requires minimal maintenance.
Rear Disc Brake, a feature that sets it apart from other minibikes.

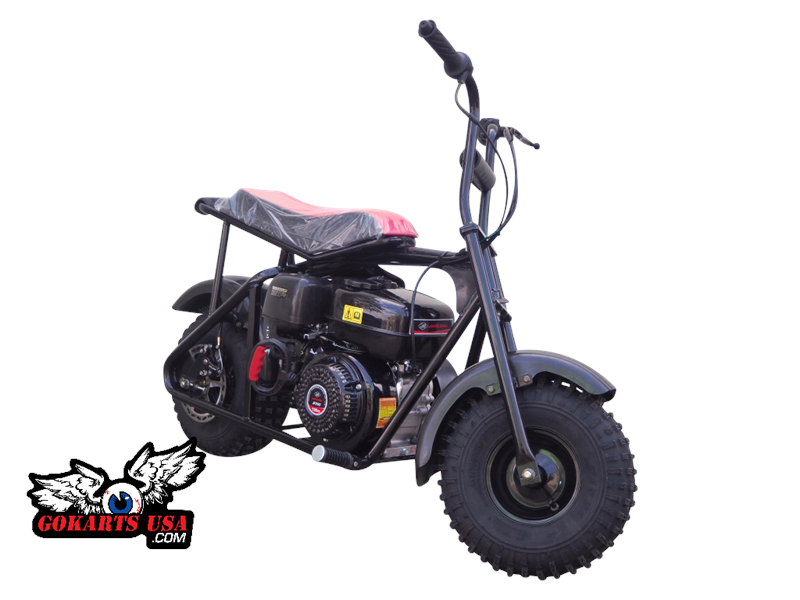

This model operates on a rear-wheel chain drive and offers endless entertainment for all ages. With over two decades of experience, TrailMaster continues to deliver exceptional products, including the retro-inspired Storm 200 minibike designed for longevity.
Specifications
Engine Displacement: 196cc 6.5 HP
CARB Approved
Starting: Recoil Cord
Spark Plug Type: Torch – F7RTC
Cooling: Air cooled
Ignition Type T.C.I
Cylinder head config.: OHV
Number of Cylinders: Single
Combustion Cycle: 4-stroke
Bore and Stroke: 68 x 54mm
Compression Ratio: 8.5:1
Rated Power 7.7kw @ 3600rpm
Rated Torque: 13.5Nm @ 2500rpm
Idle Speed 1500 ± 100 rpm
Top Speed 30-35mph
Drive System Type: Chain Drive
Gear Ratio: Centrifugal clutch
Rear Brakes Mechanical Disc
Tires: Front Tire Size AT145/70-6; Rear Tire Size AT145/70-6
Fuel Gas Tank Capacity: 0.81gal.
Fuel type Unleaded 87 octane or higher
Oil Capacity .53qt. (.5L)
Oil Type SAE 10W-40
Dimensions & Weights
Length x Width x Height: 51.2” x 25.6”x 35.4”
Seat Height: 25.2”
Ground Clearance: 6”
Vehicle Net Weight: 103lbs
Weight Capacity: 250lbs
Crate dimension: 53”x23”x18”
Shipping Weight: 130lbs (With pallet: 170lbs)
*Seat color may vary
