made in USA since 1960.
EVERYTHING INCLUDED: Except Engine and Clutch.

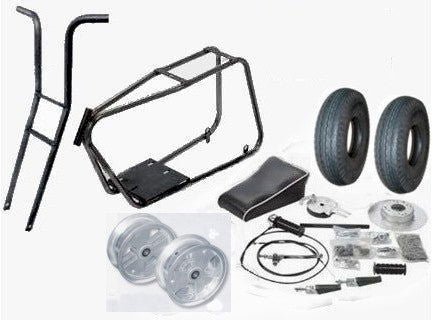

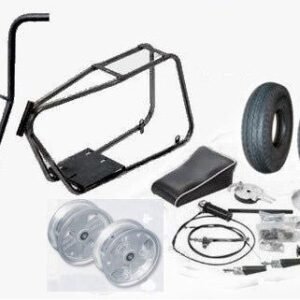

INCLUDED: Frame, Fork, 8 in. Aluminum Wheels, Tires, Inner tubes, Drum Brake , Brake Lever, Brake Cable, 72T Sprocket, #35 Chain, Throttle Controls, Padded Seat and all Hardware.
Add Engine and Clutch to complete kit
the video is not of this kit! It’s shown as a great example of what you can do with our mini bike parts and kits. Good Job!
Painting and Assembly Required Assembly Manual
This is the original Mini Bike made since 1960
Remember the Old School Mini bikes of the 60s? Like Taco, Bonanza and Rupp? MINI BIKE WARNING
Those of you who grew up in the 60’s remember Minibikes as a wonderful part of childhood. Boy’s who were fortunate enough to own one couldn’t wait to get out of school and go down to the local field to ride.
SPECS:
Will accept a 2 to 6hp Engine
4 1/2″ Internal Expanding Brake
72T Sprocket / Brake Drum Combo
8″ Aluminum Split Rim Mag style Wheels
4 Bearings, 2 each wheel
Front tire: 480/400-8″ – Knobby
Rear tire: 480/400-8″ – Knobby
Front and Rear Inner tubes
Front & Rear Axles
#35 chain with master link
Deluxe Throttle Control, Grips and Cable
Brake Lever and Cable
Deluxe Padded Seat
Hardware Kit
Low cost, High Quality, MADE-IN-USA
Rugged Construction
Ready to paint and assemble with basic hand tools
CLUTCH
You will need to select a Clutch for your Mini Bike in Product Options above. The 12 tooth clutch will give you a faster take off and lower gearing for climbing hills. The 13 tooth clutch will give you more top end speed
ENGINE
Engine Sold Separately. The Mini Bike Kit does not include an Engine unless you add one. After adding this Mini Bike Kit to your cart, you can add an engine and clutch.
Honda, Titan and Predator 6hp engines all fit this frame, the Titan Engine has the throttle cable adapter setup for mini bikes and go karts. Not just any engine will work.
GAS TANK: Most of the newer engines now have a larger gas tank and a much taller gas cap due to EPA requirements. On a Mini bike, this can make it difficult or impossible to remove the gas cap. The Titan engine comes with a side-fill gas tank for easy fueling, and is also approved for California.
You may also install an external Mini bike Gas Tank. Our 7 and 11″ Cylindrical gas tanks can be mounted on the mini bike or directly on the engine. The stock gas tank can be relocated and mounted on the frame in front of the seat using heavy duty zip ties..
Honda GX and Predator engines may be a bit difficult to fuel due to the center mounted gas cap. The Titan engine solves this problem with a side-fill Gas Tank. This is not an issue on a Go kart
*mini bike parts are sold as a novelty items, not for use on public roadways
THESE ARE PARTS ONLY. No representation is made regarding use of these parts for a specific purpose. Customer Assumes All Risk associated from using these parts or operating any device using these parts. Customer is responsible for any and all final design of application and use of these parts. Only persons with proper mechanical training should use these parts.
