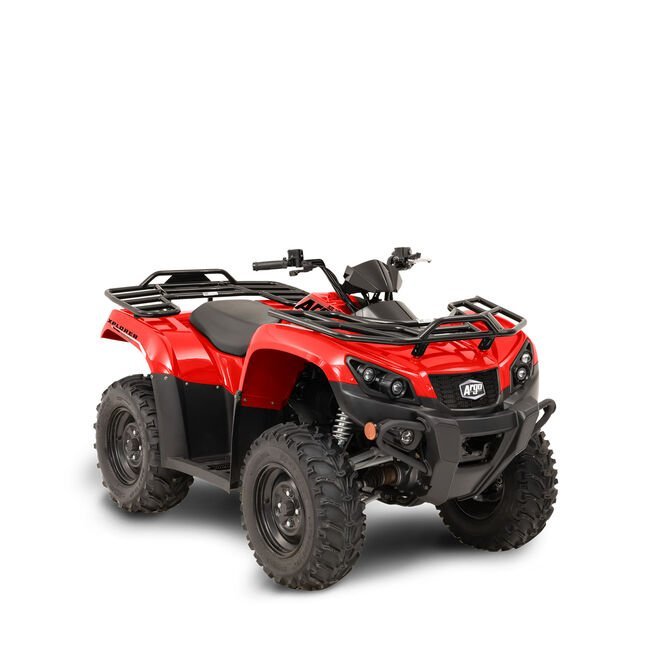

The Argo Xplorer XR 500 ATV is built for outdoor enthusiasts seeking durability and performance on any terrain. Powered by a 443cc liquid-cooled 4-stroke engine with electronic fuel injection (EFI), this versatile ATV delivers balanced horsepower and torque for trail riding or heavy-duty tasks. Available in red or green, its robust design and high-quality features make it ideal for riders craving adventure without digital distractions.
Equipped with push-button 2WD/4WD and a front differential lock, the XR 500 conquers challenging landscapes. Heavy-duty steel racks offer 225 lbs of carrying capacity, while the 2-inch receiver hitch supports up to 985 lbs of towing. With independent double A-arm suspension and 24-inch Kenda tires, it ensures a smooth, controlled ride, complemented by a multifunctional digital gauge for real-time ride data.
Key Features of the Argo Xplorer XR 500

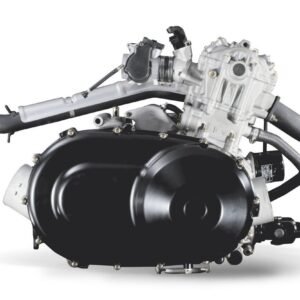

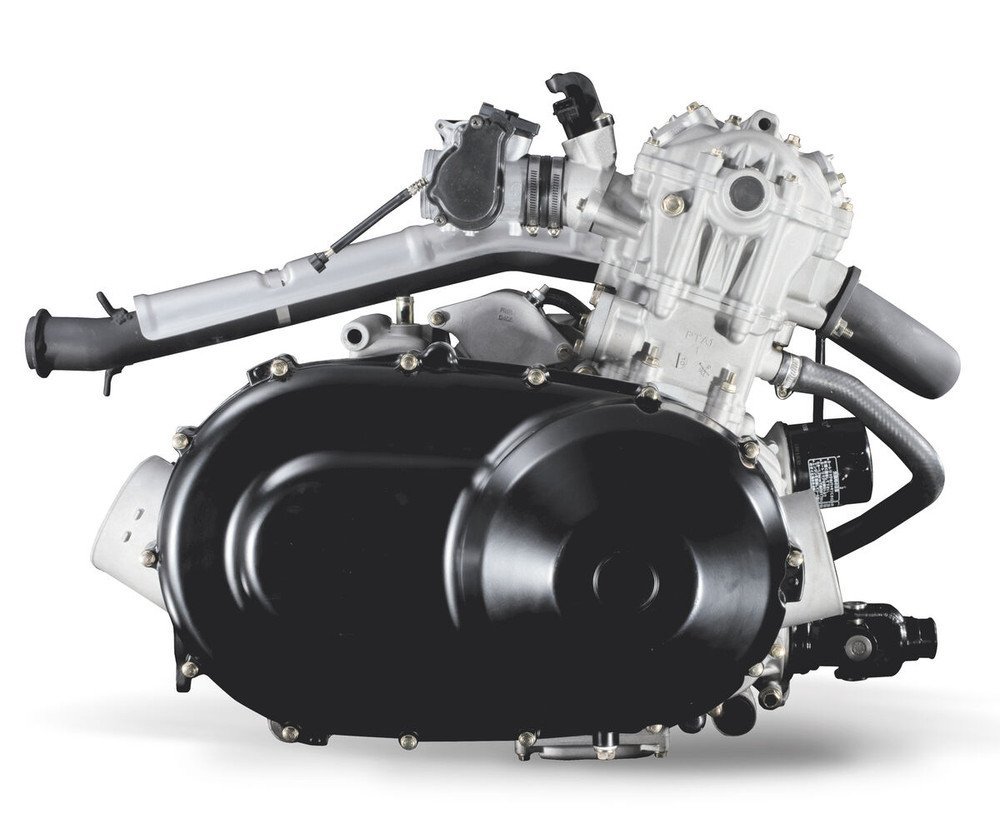

- 443cc EFI Engine: Liquid-cooled SOHC single-cylinder with ECU ignition for reliable power.
- Automatic CVT Transmission: Includes engine braking with forward, neutral, and reverse gears.
- 2WD/4WD Drive: Push-button selection with front differential lock for enhanced traction.

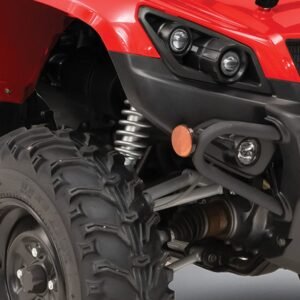

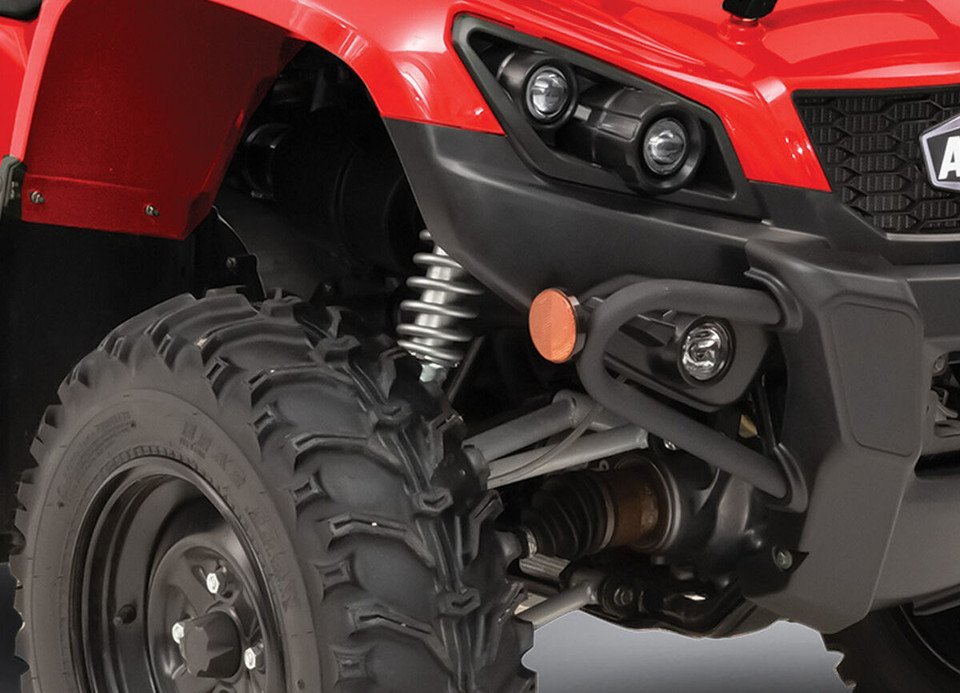

- Suspension System: Independent double A-arm front and rear with adjustable preload shocks.
- Braking System: Front and rear hydraulic disc brakes for precise stopping.
- Lighting: Hi/low projector beam headlights with LED running lights, plus dual taillights and brake lights.

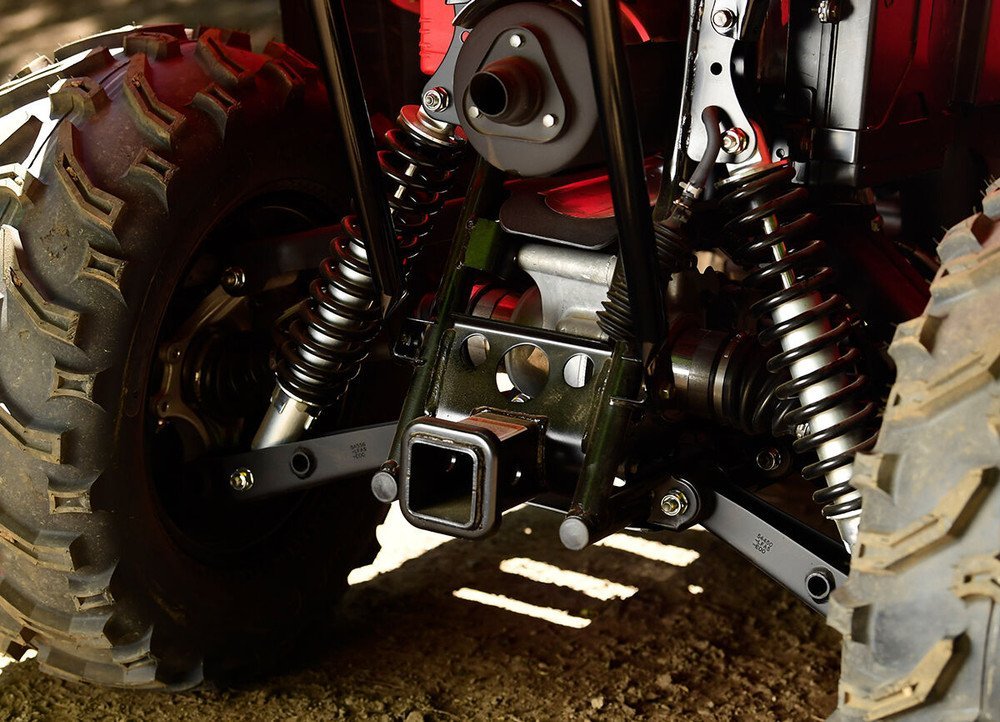

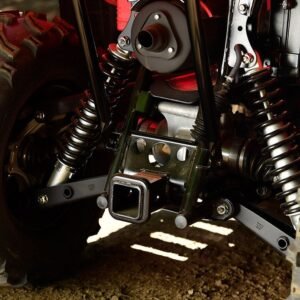

- Racks and Hitch: Steel front/rear racks (225 lbs capacity) and 2-inch receiver (985 lbs towing).

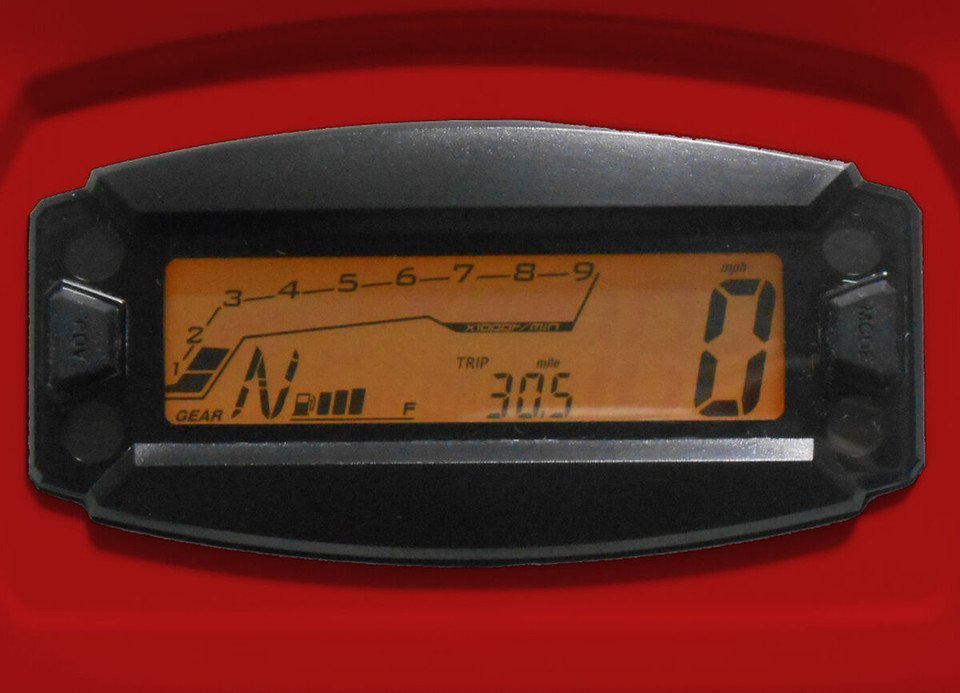

- Digital Gauge: Displays odometer, speedometer, tripmeter, RPM, fuel, and more.
- Tires: 24-inch Kenda tires on steel rims for off-road traction.
Specifications Table
| Specification | Details |
|---|---|
| Displacement | 443cc |
| Engine Stroke | 4-Stroke |
| Cylinder Arrangement | SOHC Single-Cylinder |
| Valve Configuration | 4-Valve |
| Fuel System | EFI |
| Cooling System | Liquid |
| Bore x Stroke | 89 x 71.2 mm |
| Compression Ratio | 9.1:1 |
| Start Method | Electric Start |
| Ignition | ECU |
| Transmission | Automatic CVT with Engine Braking (F/N/R) |
| Drive | Push-Button 2WD/4WD with Front Differential Lock |
| Suspension (Front/Rear) | Independent Double A-arm with Adjustable Preload Shocks |
| Brakes (Front/Rear) | Hydraulic Disc |
| Lighting | Hi/Low Projector Beam Headlights with LED Running Lights, Dual Taillights & Brake Lights |
| Racks | Heavy-Duty Steel Front & Rear (225 lbs capacity) |
| Hitch | 2-inch Receiver (985 lbs towing capacity) |
| Tires | 24-inch Kenda on Steel Rims |
| Colors | Red or Green |
| MSRP | Subject to change; excludes freight, setup, taxes, registration. Additional destination charge applies. |
