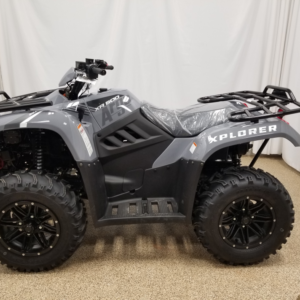

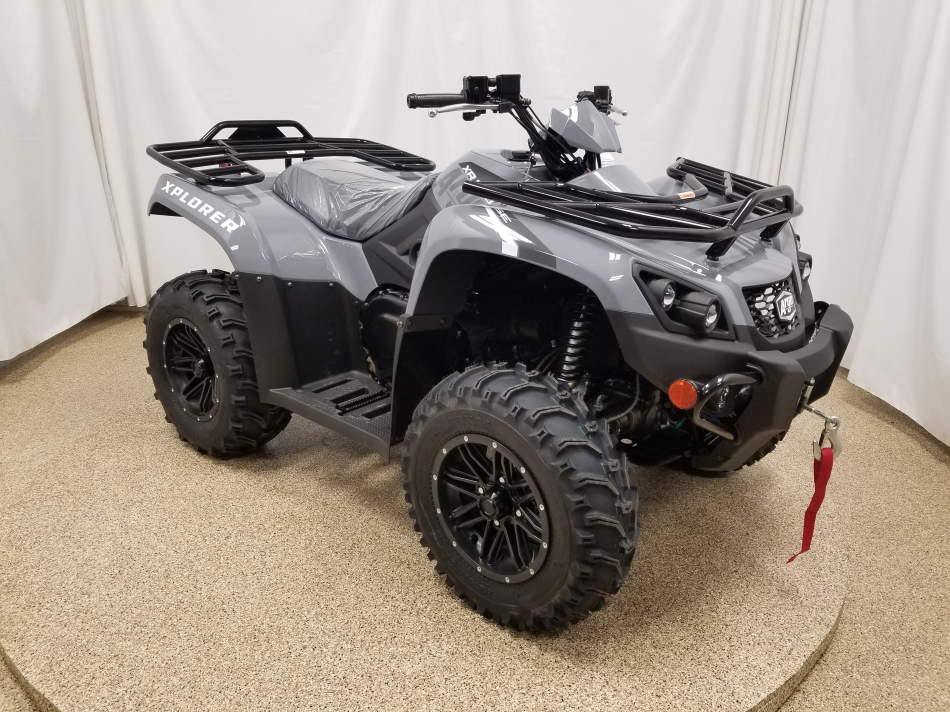

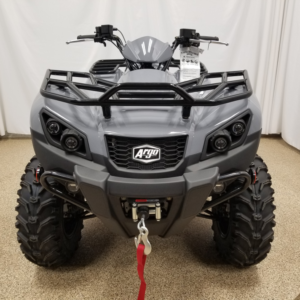

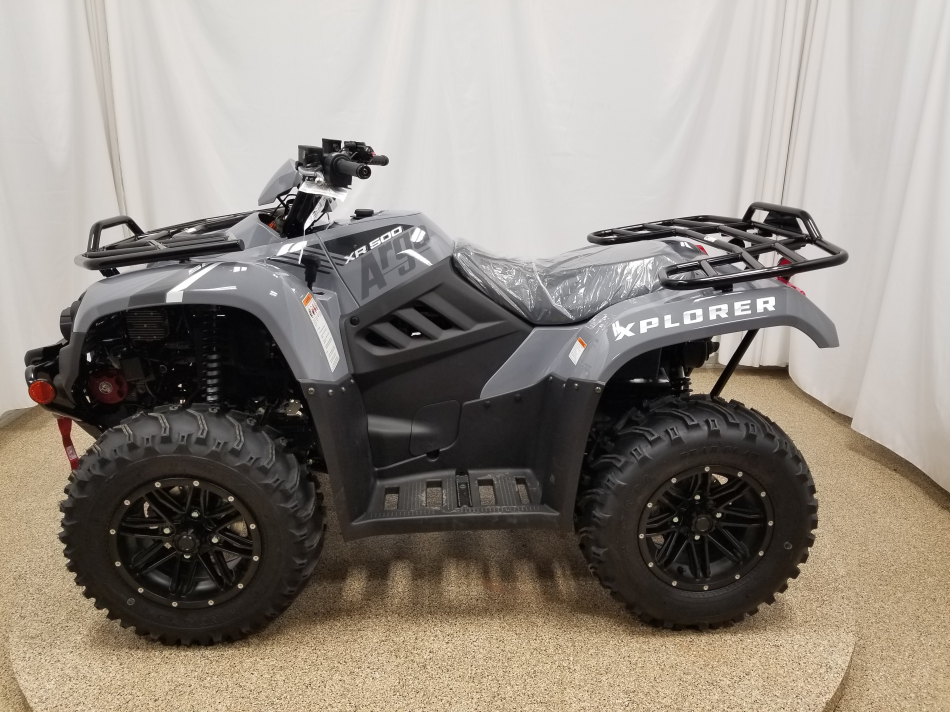

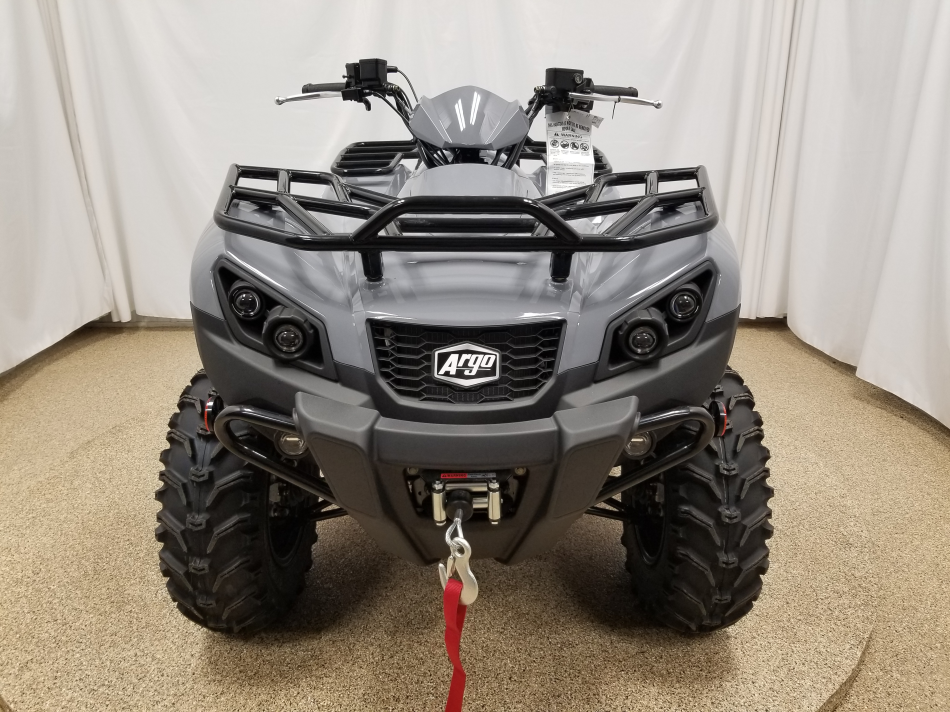

2023 ARGO XPLORER XR 500 SE 4X4
Year: 2023
Color: Gray
Hours: New
Miles: New
Tire Size: 24″ Kenda
Engine: Single Cylinder 443cc EFI Gas
Transmission: CVT Automatic
Emissions: EPA USA
Minimum Driver Age: 16
| DISPLACEMENT | 443CC |
| ENGINE STROKE | 4-STROKE |
| CYLINDER ARRANGEMENT | SOHC SINGLE-CYLINDER |
| VALVE CONFIGURATION | 4 VALVE |
| FUEL SYSTEM | EFI |
| COOLING SYSTEM | LIQUID |
| BORE X STROKE | 89 X 71.2 MM |
| COMPRESSION RATIO | 9.1:1 |
| START METHOD | ELECTRIC START |
| IGNITION | ECU |
| OVERRIDE BUTTON | STANDARD |
| TRANSMISSION TYPE | CVT AUTOMATIC |
| FINAL DRIVE | SHAFT DRIVE |
| DIFFERENTIAL FUNCTION | FRONT DIFFERENTIAL |
| DRIVE SYSTEM TYPE | ELECTRONIC 2WD/ 4WD /LOCK |
| ELECTRIC DIFF LOCK | YES |

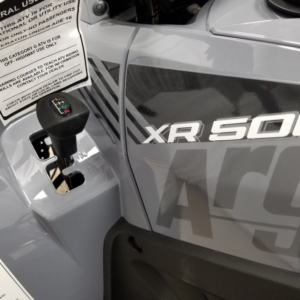

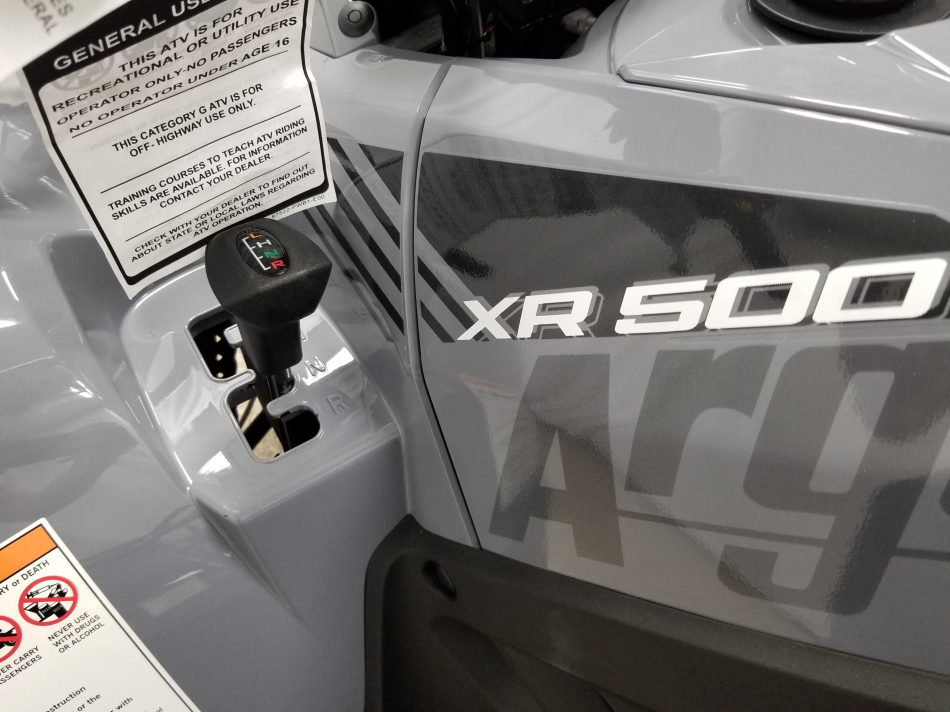

| GEAR SELECTION | H/L/N/R |
| REVERSE | YES |
| ENGINE BRAKING SYSTEM (EBS) | STANDARD |
| LENGTH | 75 IN (1,905 MM) |
| WIDTH | 48.4 IN (1,230 MM) |
| HEIGHT | 47.6 IN (1,210 MM) |
| SEAT HEIGHT | 33.2 IN (843 MM) |
| GROUND CLEARANCE | 10.2 IN (260 MM) |
| WHEELBASE | 48.2 IN (1,225 MM) |
| TOWING CAPACITY | 985 LBS (447 KG) |
| DRY WEIGHT | 627 LBS (284 KG) |
| WET WEIGHT | 670 LBS (304 KG) |
| FUEL TANK CAPACITY | 4.0 GAL (15.0 L) |
| RIDER CAPACITY | 1 |
| SUSPENSION – FRONT | INDEPENDENT DOUBLE A-ARM |
| SUSPENSION – REAR | INDEPENDENT DOUBLE A-ARM |
| SUSPENSION TRAVEL – FRONT | 7.5 IN (190 MM) |
| SUSPENSION TRAVEL – REAR | 7.5 IN (190 MM) |
| BRAKE – FRONT | DUAL HYDRAULIC ??DISC |
| BRAKE – REAR | HYDRAULIC ?DISC |
| FOOT BRAKE | STANDARD |
| TIRE SIZE (FRONT) | AT24X8-12 (KENDA) |
| TIRE SIZE (REAR) | AT24X10-12 (KENDA) |
| WHEEL RIM | ALUMINUM |
| ELECTRIC POWER STEERING | NO |
| BATTERY | MF 18AH |

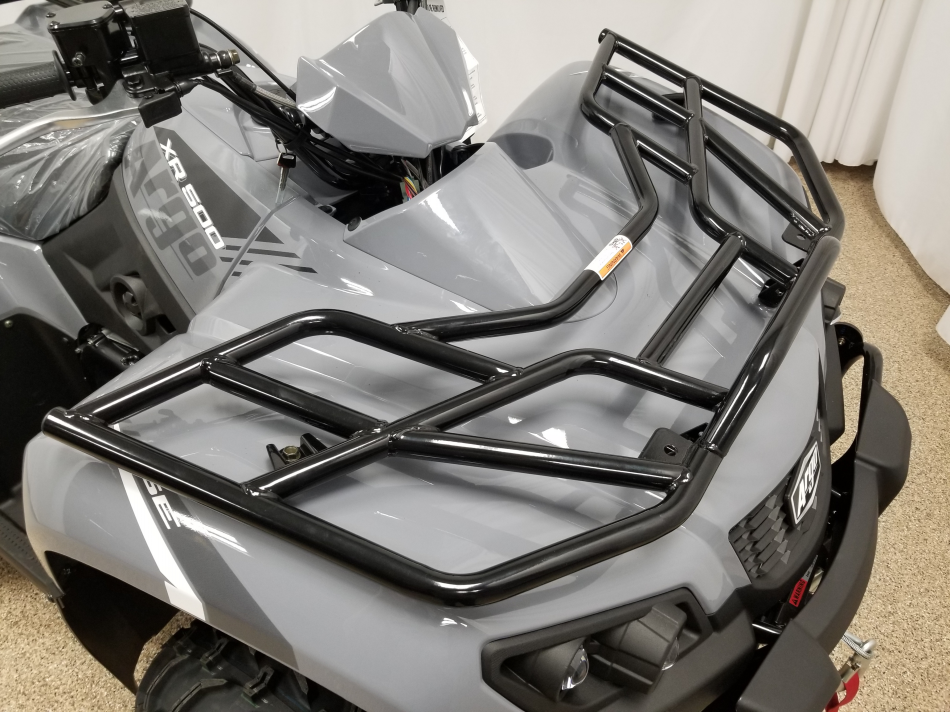

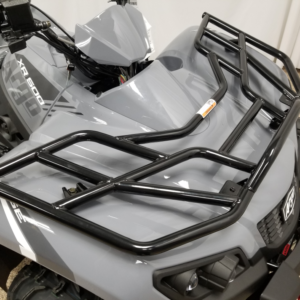

| FRONT RACK | 75 LB (34 KG) |
| REAR RACK | 150 LB (68 KG) |
| FRONT BUMPER | STANDARD |
| HANDGUARD | N/A |
| HITCH | STANDARD/2″ RECEIVER |
| WINCH | 3,000 LB WINCH |
| 12V CHARGER | DC 12V 10A 120W |
| DAYLIGHT STRIP | RUNNING LIGHTS |
| SKID PLATE | PLASTIC |
| PASSENGER HANDLES | NO |
| PASSENGER BACKREST | NO |
| STORAGE | UNDER-SEAT |
| FRONT BRUSH GUARD | N/A |
| USB CHARGING PORT | N/A |
| REAR BOX STORAGE | N/A |

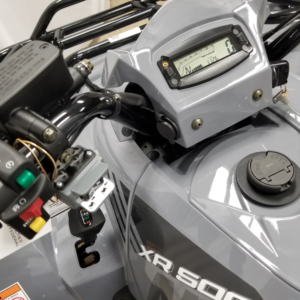

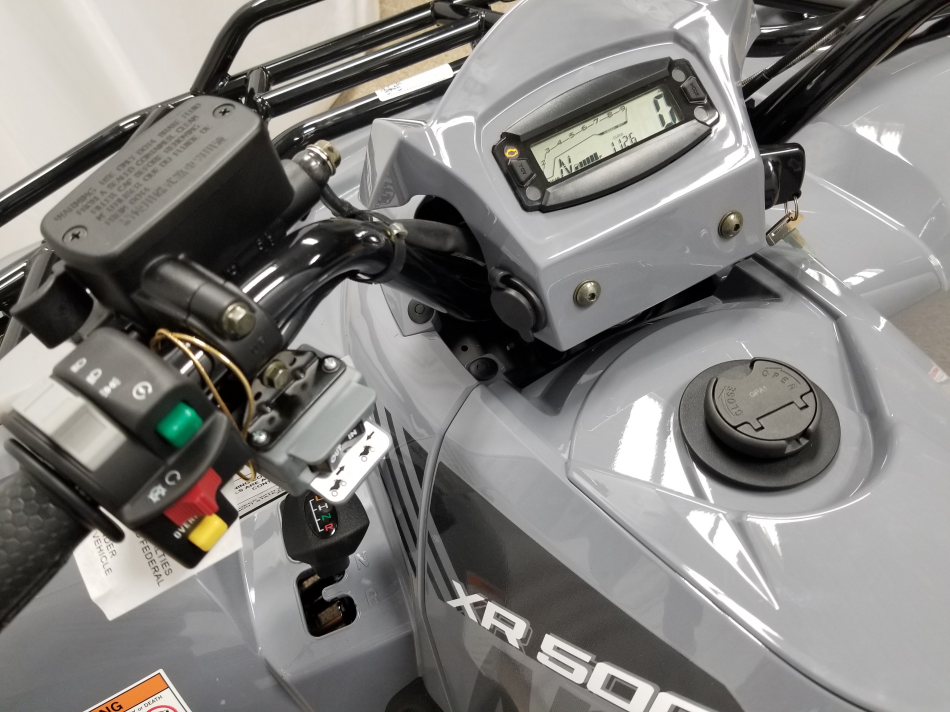

| INSTRUMENTATION | DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDOMETER, TRIPMETER, RPM, TRANSMISSION POSITION, 2WD/4WD/LOCK INDICATOR, FUEL GAUGE, TEMPERATURE, LOW-BATTERY, HIGH BEAM LIGHT AND CHECK ENGINE LIGHTS |
| LIGHTING | DUAL 12V 35W HIGH/LOW BEAM, SINGLE WITH BRAKE LIGHT |
| COLOR | PAINTED FLAME ORANGE OR PAINTED SLATE GREY |
