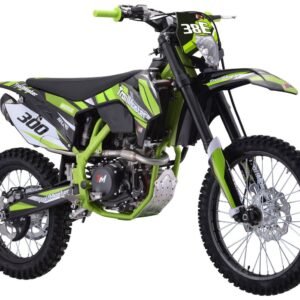

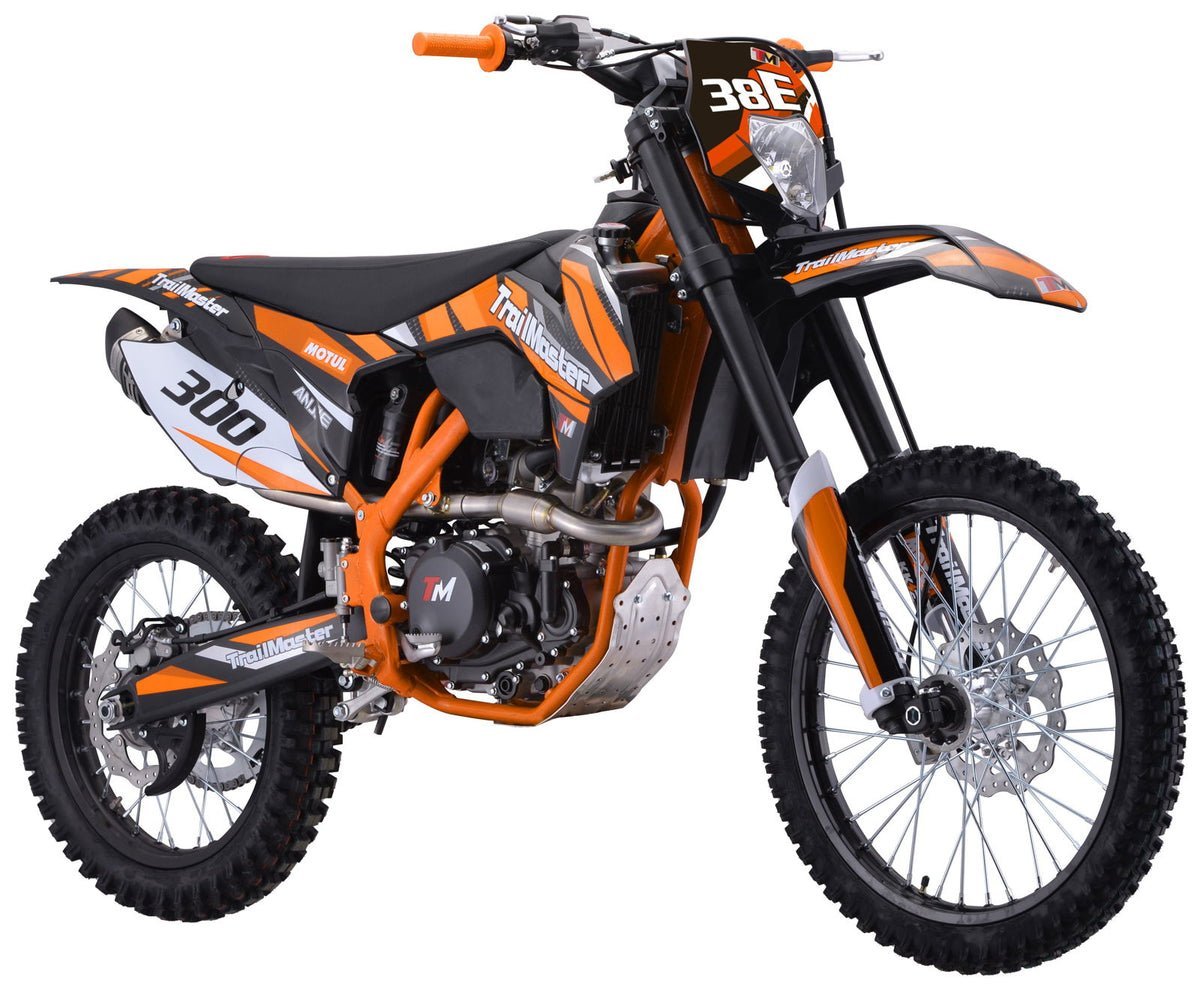

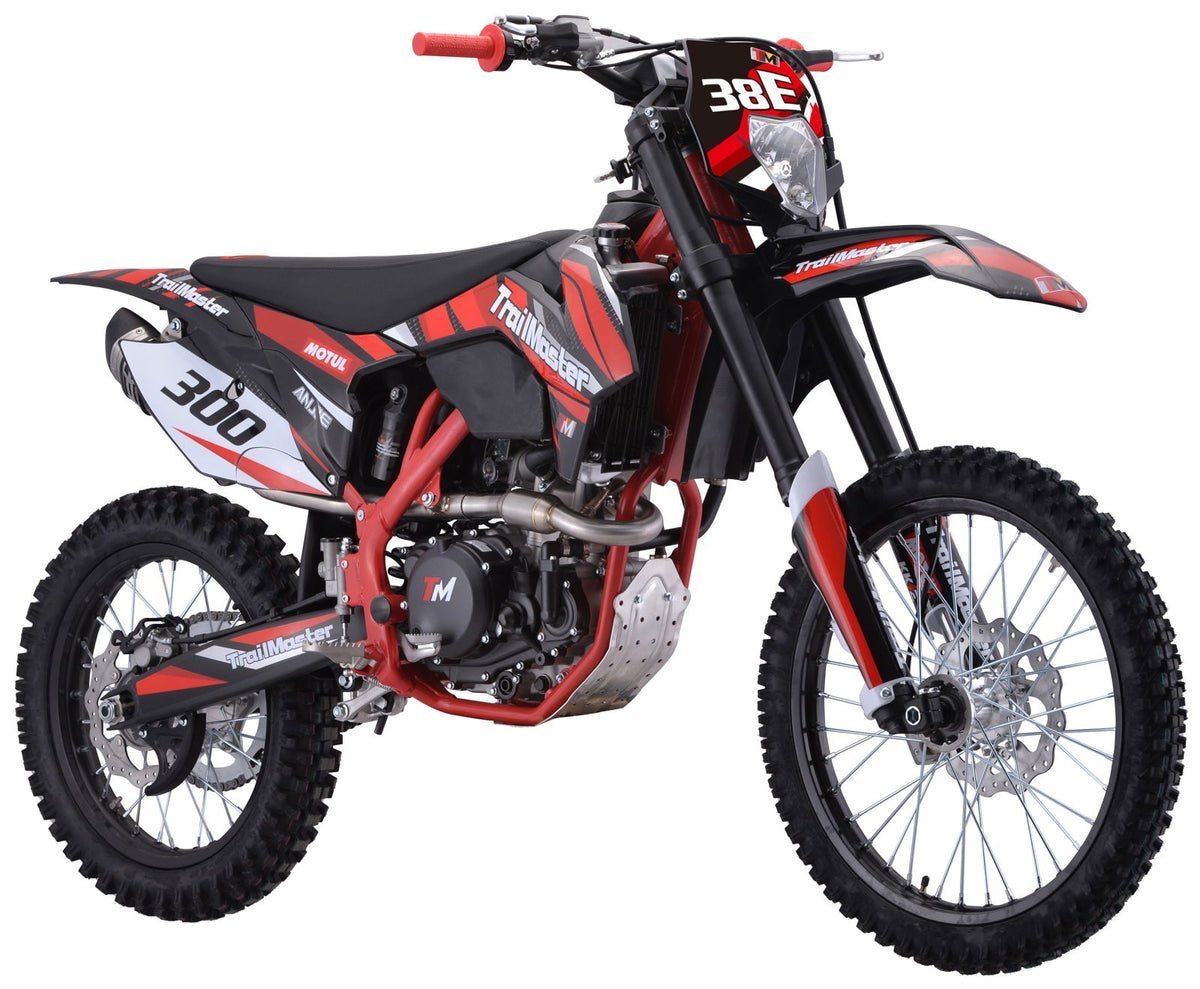

The TM 38E‐300 (EFI) is Trailmaster’s first full size Fuel Injected Dirt Bike. It has a high performance electric start (only) liquid cooled 298cc 4 stroke 31hp engine with EFI – Electronic Fuel Injection with a top speed of more than 65 MPH and a seat height of 36.2”. It is available in red, green, and orange colors. The TM38E features a 6 speed manual transmission with front and rear disc brakes, inverted front shock, and a lightweight steel tube frame!
The bikes full on motocross ergonomics with a 21” front / 18” rear wheel and race suspension system, make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic Digital CDI ignition makes key starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 242 pounds, the 298cc engine can propel the motorcycle to speeds of more than 65 miles per hour.
Specifications
Engine System
Engine Type NC298, Single Cylinder, 4- Stroke, 4-Valve, Liquid Cooled, SOHC, Balance Shaft
Displacement 298cc
Max Power 31 hp/ 9000rpm
BorexStroke 82 x 53.6 mm
Lubrication Pressure and Splash
Shift Type Wet multi disc clutch, International Gear Pattern,6-Speed
Start Type Electric & Kick Start
Ignition
Digital CDI
Drive Train #520 Chain, FT: 13T/RR: 51T Sprocket
Size Data
Front Fork Φ54*Φ60-940mm Inverted Hydraulic Dual Adjustable Forks, 300mm Travel
Rear Shock 480mm Dual Adjustable Shock with Ballonet, 120mm Travel Front Wheel 7116 Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 21
Rear Wheel 7116 Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 18
Front Tire 80/100-21
Rear Tire 110/100-18 Front Brake Dual Piston Caliper, 240mm Disc
Rear Brake Single Piston Caliper, 240mm Disc
Frame/Suspension/Brake System
Frame Central Tube High Strength Steel
Swing-Arm: Forged Aluminum L=590mm
Handle Bar: Tapered Aluminum #7075
Overall Size 86.6″X33.9″49.2″
Packing Size 67.5″X18″X34″
Wheel Base 59″
Seat Height 37″
Ground Clearance 11.8″
Fuel Capacity 1.72 Gal.
N.W 234lbs G.W 326lb
