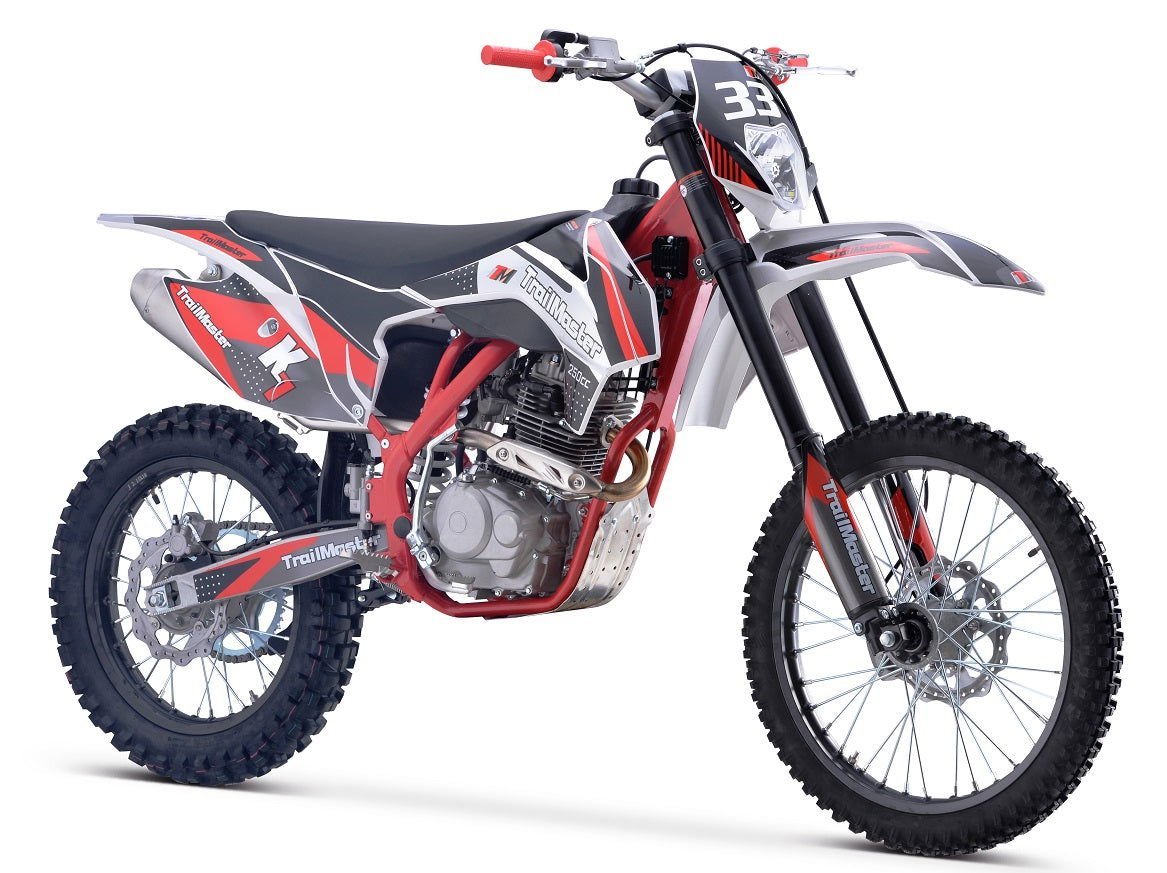

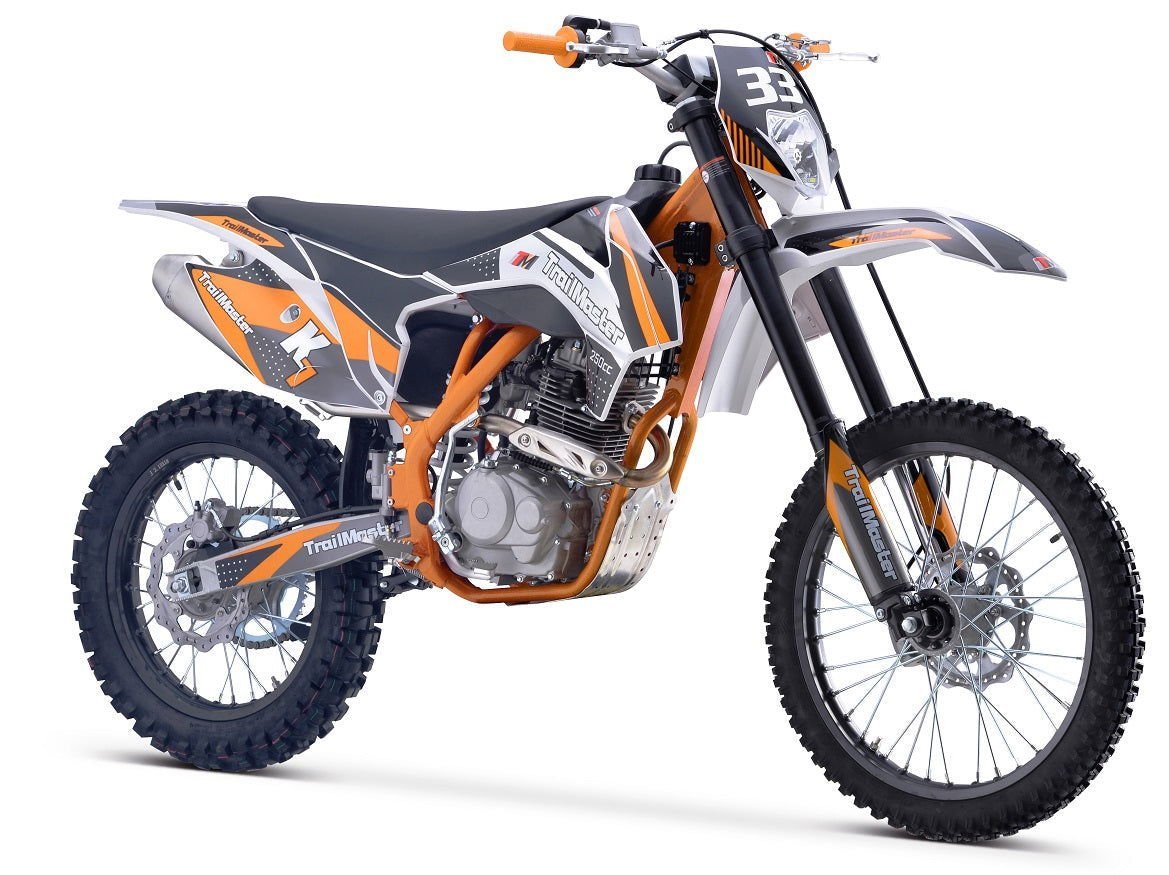

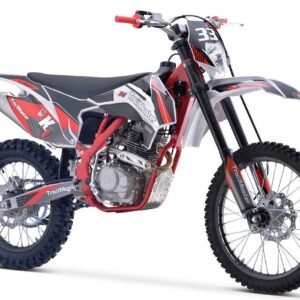

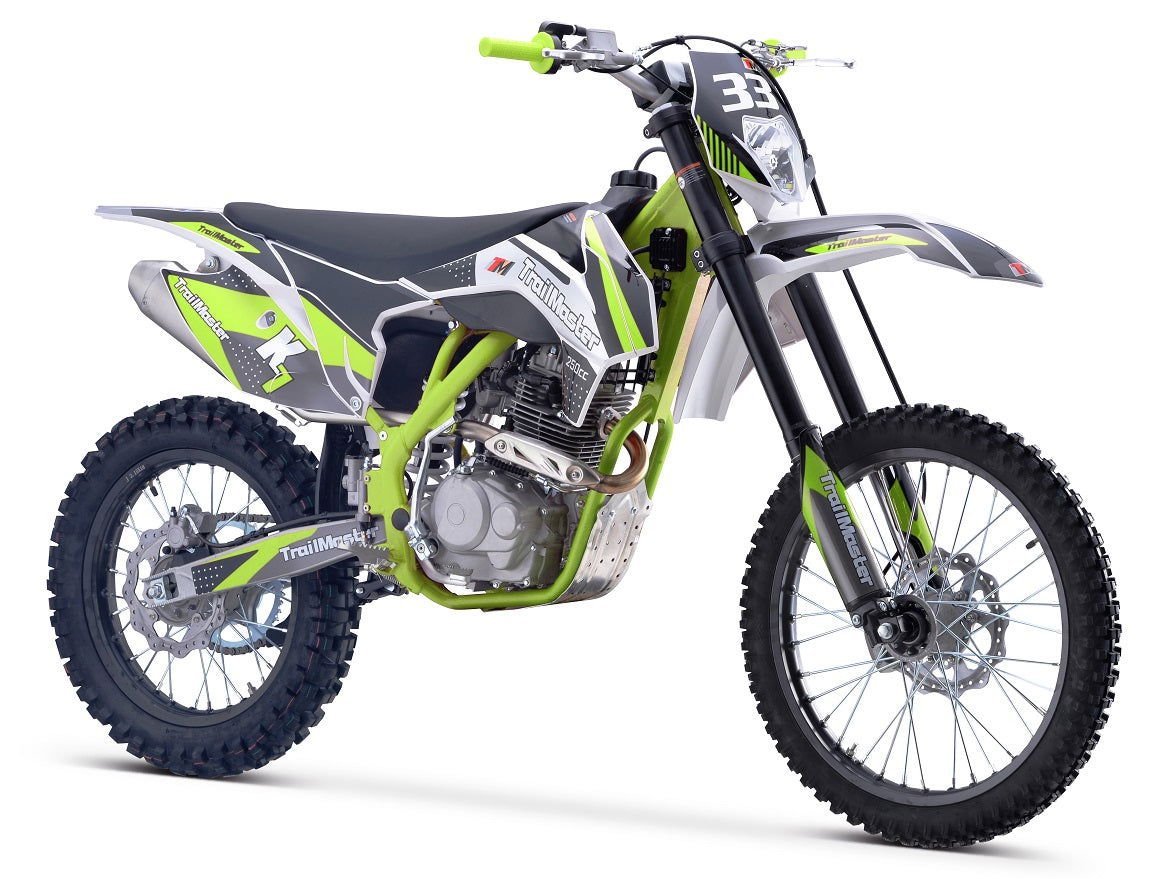

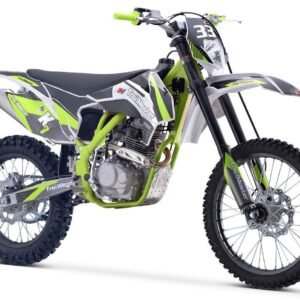

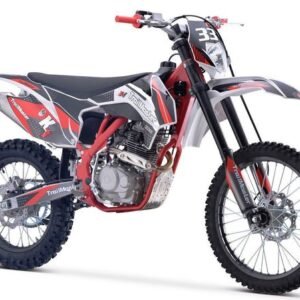

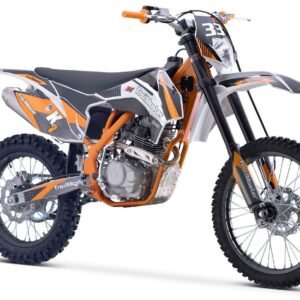

TrailMaster TM33 250 Dirt Bike, 5-Speed Manual, Dual Disc Brakes (21/18) – Red

The TM 33‐250 is a great full size dirt bike. It has both a kick start and a new “ELECTRIC START”. It has a high performance 223cc 4 stroke 16hp engine with a top speed of around 55 MPH and a seat height of 37”. It is available in red, green, and orange colors. The TM33 features a 5-speed manual transmission with front and rear disc brakes, inverted front shock, and a lightweight steel tube frame!
The bikes full on motocross ergonomics with a 21” front / 18” rear wheel and race suspension system, make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic Digital CDI ignition makes key and kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 326 pounds, the 223cc engine can propel the motorcycle to speeds of 55 miles per hour.
Specifications
Engine System
Engine Type  ZSCB250D‐G, Single  Cylinder, 4‐Stroke, Air Cooled
Displacement  223 ml
Max Power  12/7000 kw/r/min, 16 HP
Max Torque  17.5/5500 N.m/r/min
Compression Ratio  9.3~9.9:1
Shift Type  Manual Wet Multi‐Plate,  1‐N‐2‐3‐4‐5, 5‐Gears
Bore and Stroke  65.5 x 62.2 mm
Min.Fuel Cons ‐ 354(g/Kw.h)
Start Type  Electric & Kick Start
Carburetor  PZ28
Ignition  Digital CDI
Transmission  #520 Chain, FT: 13T/RR:  47T Sprocket
Size Data
Front Suspension  Φ51*Φ54‐910mm  Inverted Hydraulic Forks, 150mm Travel
Rear Shock  460mm Spring Pre‐load  None‐Adjustable Shock
Front Wheel  Alum, FT: 1.60 x 21
Rear Wheel  Alum, RR: 2.15 x 18
Front Tire  80/100‐21
Rear Tire  110/100‐18
Front Brake  Dual Piston Caliper,  240mm Disc
Rear Brake  Single Piston Caliper,  240mm Disc
Frame/Suspension/Brake System
Frame  Lightweight ,Steel Tube Frame
Swing‐Arm  Tube High Strength Steel  Swingarm; L=560mm
Handle Bar  Tapered Aluminum  #6061
Size 86.6″X33.9″49.2″/2200x860x1250mm
Packing Size 67.5″X18″X34″/1715x450x860mm
Wheel Base  59″/1500 mm
Seat Height  37″/940 mm
Ground Clearance  11.8″/300 mm
Fuel Capacity  6.5 L / 1.72 Gal.
N.W  234lbs/117KG  G.W  326lbs/148KG
