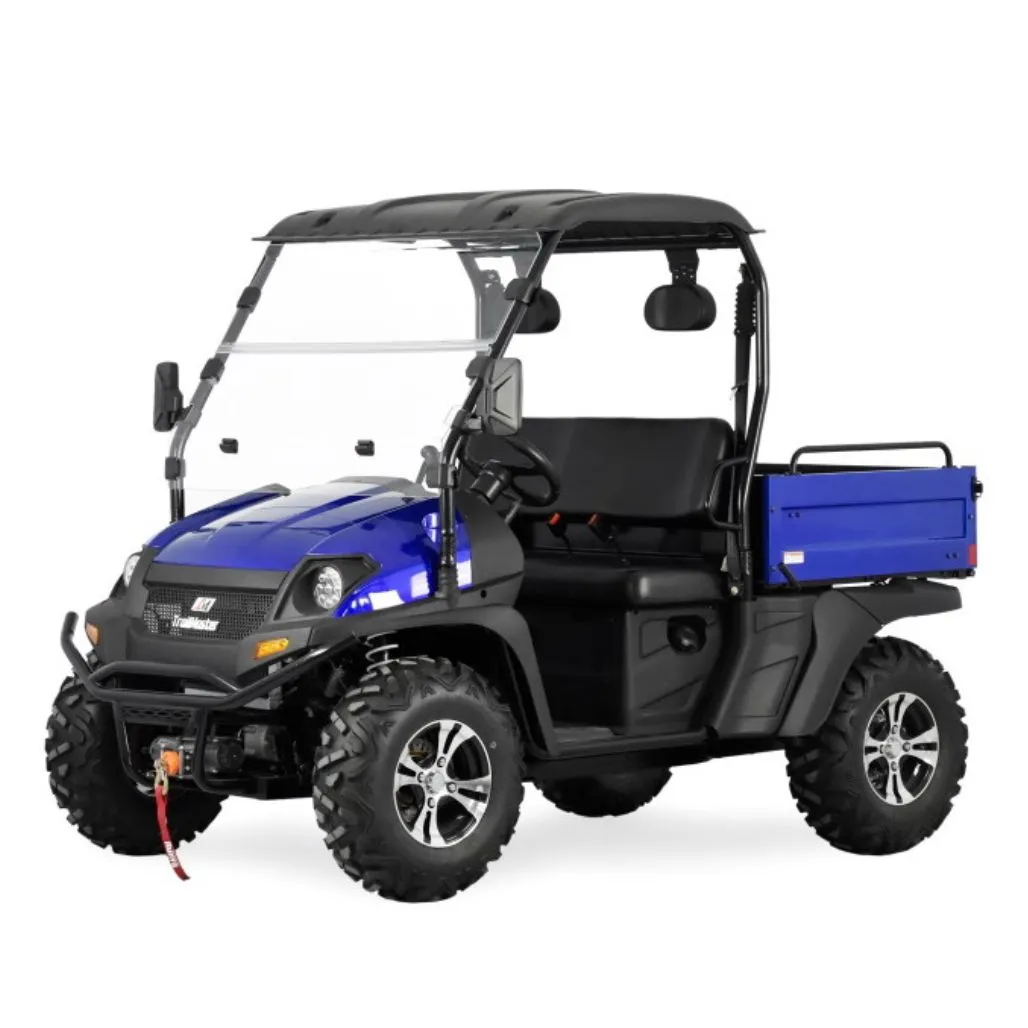

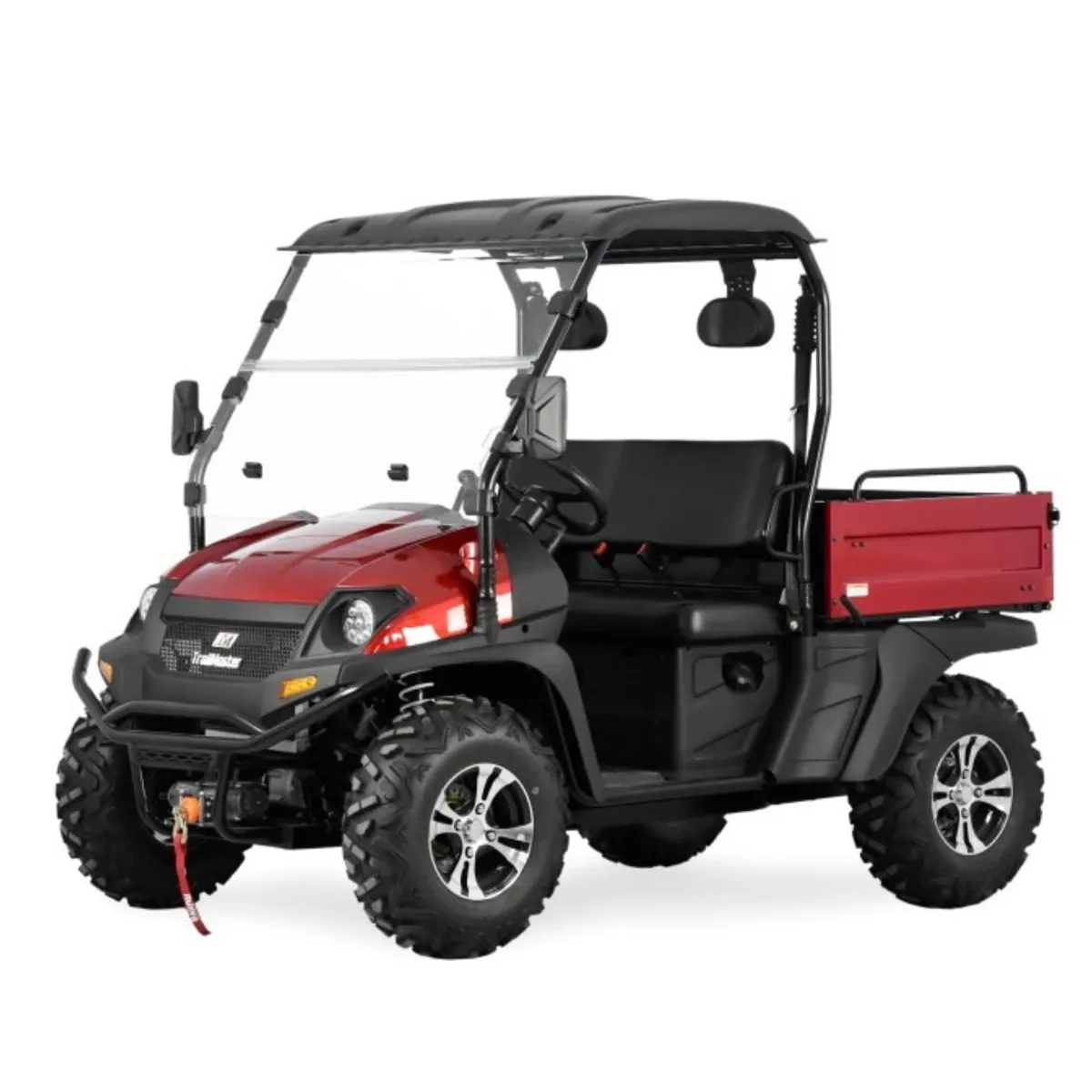

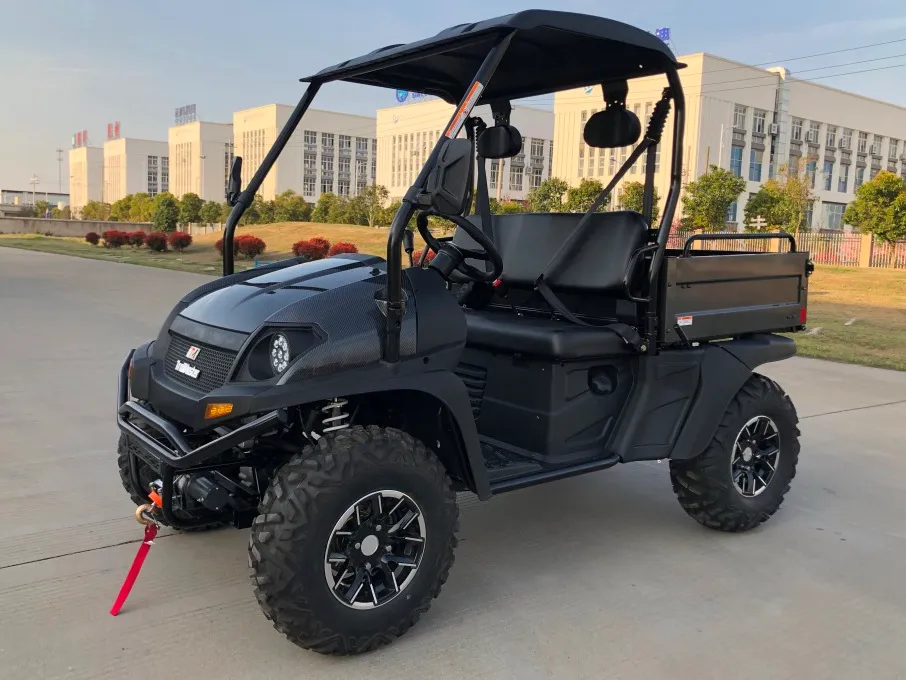

TrailMaster Taurus 450U 4×4 UTV Rear Utility Dump Bed (EFI)

This utility side by side boasts a powerful 26 HP water-cooled high-performance 390cc engine with electronic fuel injection (EFI) and internal reverse setup. With on-demand 2WD/4WD and locking differential, as well as a H/L gear, the Taurus 450U 4X4 is built for optimal driving performance. The Taurus 450U 4X4 also features 4-wheel independent suspension, a 3000-Ibs-winch, and a heavy-duty steel color dump bed. It can climb up to 30-degree slopes with ease and comes with large, aggressive off-road tires for better traction on any terrain. The LED Hi/Lo headlights, turn signals, rearview side mirrors, digital dashboard, hard top, steel front bumper, retractable safety seatbelt, 12-volt outlet, and cup holder are some of the other notable features. The Taurus 450U 4X4 is EPA certificated and has a 4-stroke, single-cylinder, water-cooled (EFI) engine with a displacement of 390.8cc. Its compression ratio is 10:1, and it has a maximum horsepower of 26HP. The transmission is auto, with L-H-N-R-P, 4X4 drive train, and a locking differential. The suspension features a Front MacPherson and Rear Dual A-ARM, with both hydraulic brakes (disc). The wheels are made of aluminum, and the max load capacity is 1000 lbs. With a wheelbase of 72″, OAL x W x H dimensions of 105″x58″x76″, and a seat height of 34″, the Taurus 450U 4X4 is perfect for any outdoor adventure. The min ground clearance is 10.2″, and it has a maximum speed of 43.2mph. The ignition mode is an electric control unit, and the fuel system is electronic fuel injection (EFI). The engine oil is SAE 15W/40, and it has a fuel tank capacity of 4.8 gallons. The Taurus 450U 4X4 also comes with an optional folded windshield and LED light bar. With a G.W. / N.W. of 1298 lbs/ 1078 lbs, dump bed capacity of 550 lbs, and towing capacity of 1000 lbs, the Taurus 450U 4X4 is a highly capable vehicle that can meet all your off-road needs. The bump bed size is 36.6″X50″X11.8″ and can dump up to a 35-degree angle. The crate dimensions are 89’X52″X50″. Get your hands on this ultimate off-road machine today!

Taurus 450U UTV Side by Side 4×4 Key Features:

• 4X4 with lock in differential
• EFI (Electronic Fuel Injection)
• Water cooled high performance 391cc engine w/ internal reverse set up
• Equipped with large heavy duty steel color dump bed
• Equipped with H/L gear, can climb up to 30 degree slopes with ease.
• Four-wheel independent suspension for much better driving experience
• Heavy duty frame, net weight 1098 lbs, max load 1000 lbs
• Equipped with 3000lbs-winch
• Digital dashboard
• LED Hi/Lo head lights
• Rear view side mirrors
• Sporting steering wheel
• Turn signals
• Retractable safety seatbelt
• Big aggressive off road tires: F / R: 25 x 8-12 / 25 x 10-12
• Polished aluminum wheels
• Hard top
• Steel front bumper
• Cup holder
• 12-V outlet
• Adjustable heavy duty front and rear shock absorber
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• Large gas tank
• Horn
• Optional:
• Folded windshield
• LED light bar

Engine Information

• EPA Certificated
• Engine Type: 4-stroke, single cylinder, water cooled (EFI)
• Displacement: 390.8cc
• Compression Ratio: 10:1
• Max HP: 26HP
  Bore & Stroke: 82X74 mm
• Max Torque and Crankshaft Speed:
  30/5000 N.m/(RPM)
• Nominal Power and Crankshaft
  Speed: 17/6500 kw/(RPM)

General Information

• Transmission: Auto, L-H-N-R-P, 4X4
• Drive Train: On demand 2WD/AWD;
  Locking differential;
• Suspension, F / R: Front MacPherson,
  Rear Dual A-ARM
• F/R: Both hydraulic brakes, Disc
• Tires, F/R: 25 x 8-12 / 25 × 10-12

Dimension Information

• Wheelbase: 72″
• OAL x W x H: 105″x58″x76″
• Seat height: 34″
• Min Ground Clearance: 10.2″
• Max Torque and Crankshaft Speed:
• 19/6500-7000 kw/(RPM)
• Max Speed: 43.2mph
• Climbing Ability: 30 degrees
• Ignition Mode: Electric Control Unit
• Fuel System: Electronic Fuel
• Injection (EFI)
• Starting System: Electric
• Battery: 12V 30Amp
• Engine Oil: SAE 15W/40
• Fuel Tank Capacity: 4.8 gallons
• Wheels: Aluminum
• G.W. / N.W.: 1298 lbs/ 1078 lbs
• Max Load: 1000 lbs
• Dump Bed Capacity: 550 lbs
• Towing Capacity: 1000 lbs
• Bump Bed Size: 36.6″X50″X11.8″, dumping 35 degree
• Crate dimension: 89’X52″X50″
