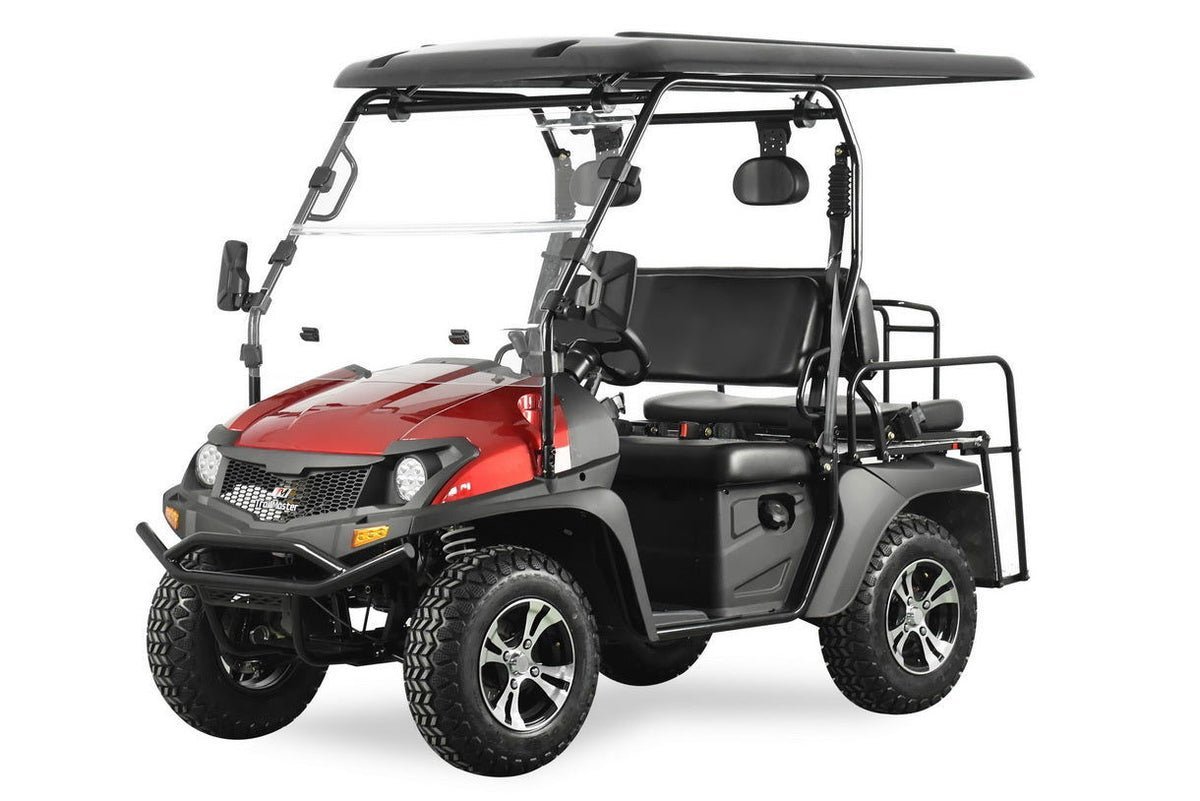

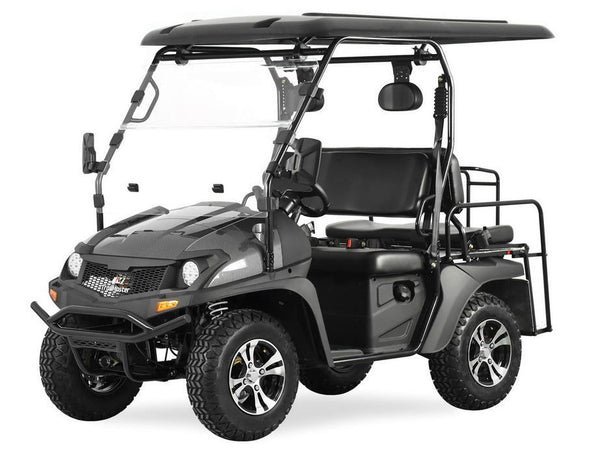

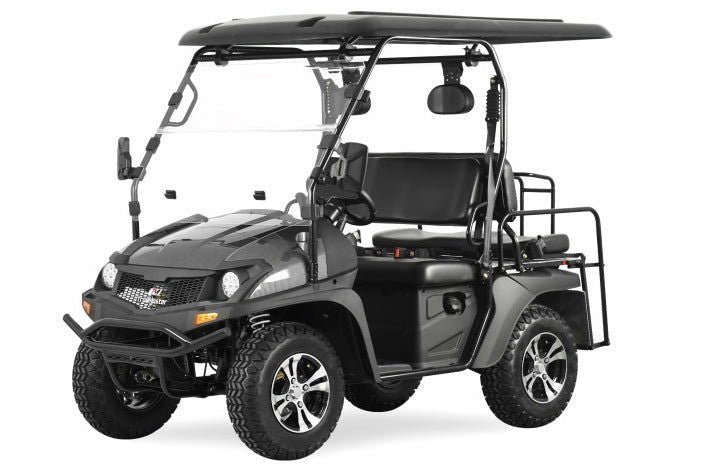

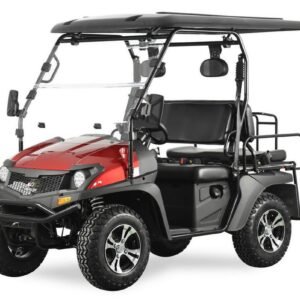

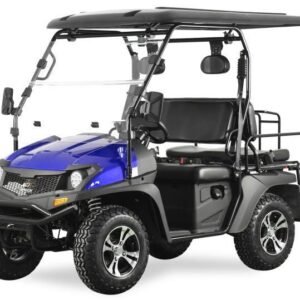

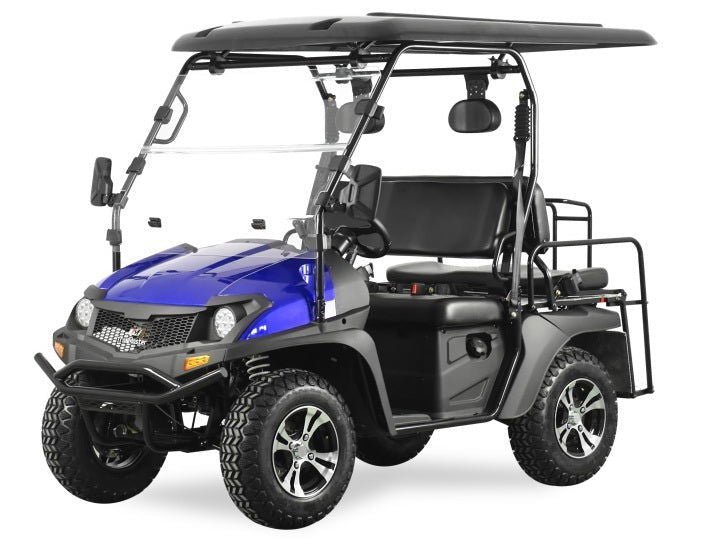

TrailMaster Taurus 200GX UTV Gas Golf Cart, Full Length Roof, 4-Seat, DOT Approved – Carbon Fiber

Equipped with rear flip seat and a full-length roof covering both front and rear seats can be used as a neighborhood golf cart to carry up to 4 persons; Can also add utility dump bed as a utility vehicle interchangeable within a few minutes; Equipped with H/L gear, low gear mode has 40% better climbing ability than the non-H/L version & can climb up to 30-degree slopes with ease.  It is perfect for a long weekend of hunting and tough jobs all week long.
Foldable 4-seater/rear-flatbed model; Add a dump bed which takes 15 minutes to install in place of the back seat for only $350 more.
Air and oil cooled high performance 177.3 cc GY6 engine with internal reverse set up, with rear shaft direct drive, more reliable power transmission, higher transmission efficiency;
Four-wheel independent suspension for much better driving experience Heavy duty frame, net weight 880 lbs, max load 800 lbs for 4 adult with flip seat Digital speedometer/odometer LED Hi/Lo beam head light Big dual purpose tires: F / R: 24 x 8-12 / 24 x 8-12 Polished aluminum wheels Double A-Arm Fully Independent Suspension Lots of Underseat Storage
EPA approved Digital Gage Set with Speedometer and Tach Head Lights, Tail Lights, and Brake Lights. Turn Signals Optional CVT Transmission Integral Manual Shift Gear Box for Forward Neutral and Reverse Direct Drive from gearbox to rear wheels via half shafts Live Axle Rear Wheel Drive 4 Wheel Hydraulic Disc Brakes Hand Actuated Mechanical Parking Brake McPherson Strut Front Suspension
Specifications
EPA Certificated
Yes
Engine Type
4-stroke, cylinder, air and oil cooled
Displacement
177.3cc
Compression Ratio
8.8
Max HP
9.5HP
Bore & Stroke
62.5X57.8 mm
Max Torque and Crankshaft Speed
11.0/4500 N.m/(RPM)
Nominal Power and Crankshaft Speed
6.5/6500 kw/(RPM)
Max speed
25mph
Climbing Ability
30 degrees
Ignition
C.D.I
Starting System
Electric
Battery
12V 9Ah
Carburetor Brand
Deli
Engine Oil
SAE 15W/40
General Information

Transmission
Auto, L-H-N-R
Drive Train
Shaft Drive; 2 WD
Drive Mode
Rear Shaft Drive, Rear differential
Suspension, F/R
Front MacPherson, Rear Dual A-ARM
Brakes, F / R
Both hydraulic brakes, Disc
Tires, F / R
24 x 8-12 / 24 x 8-12
Fuel Tank Capacity
4.8 gallons
Wheels
Aluminum
Weight, G.W. / N.W.
1136 lbs/ 880lbs
Max Load
800 lbs
Dimension Information

Wheelbase
63’½
OA L x W x H
108’x54’x74’½
Seat Height
33’½
MinGround clearance
11’½
