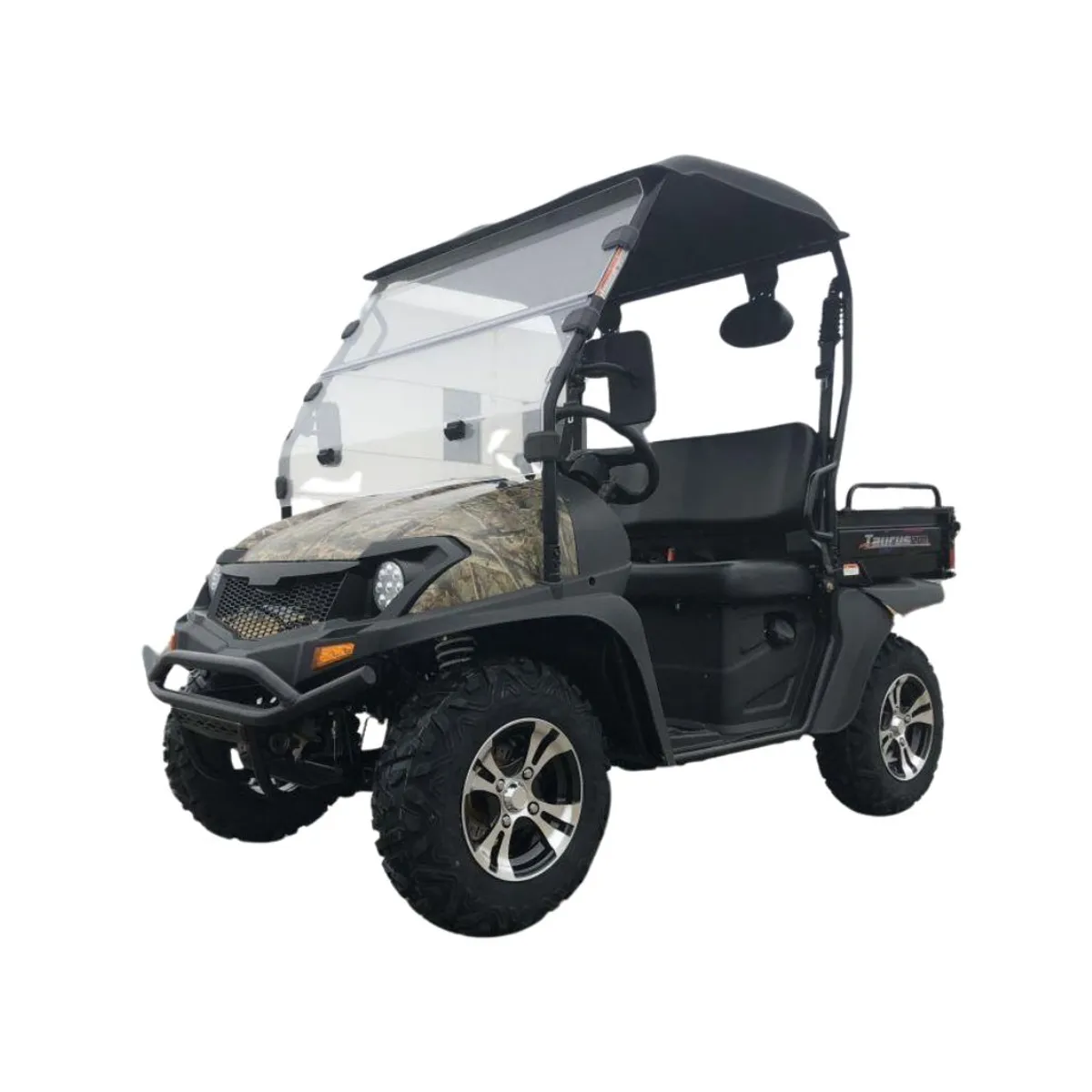

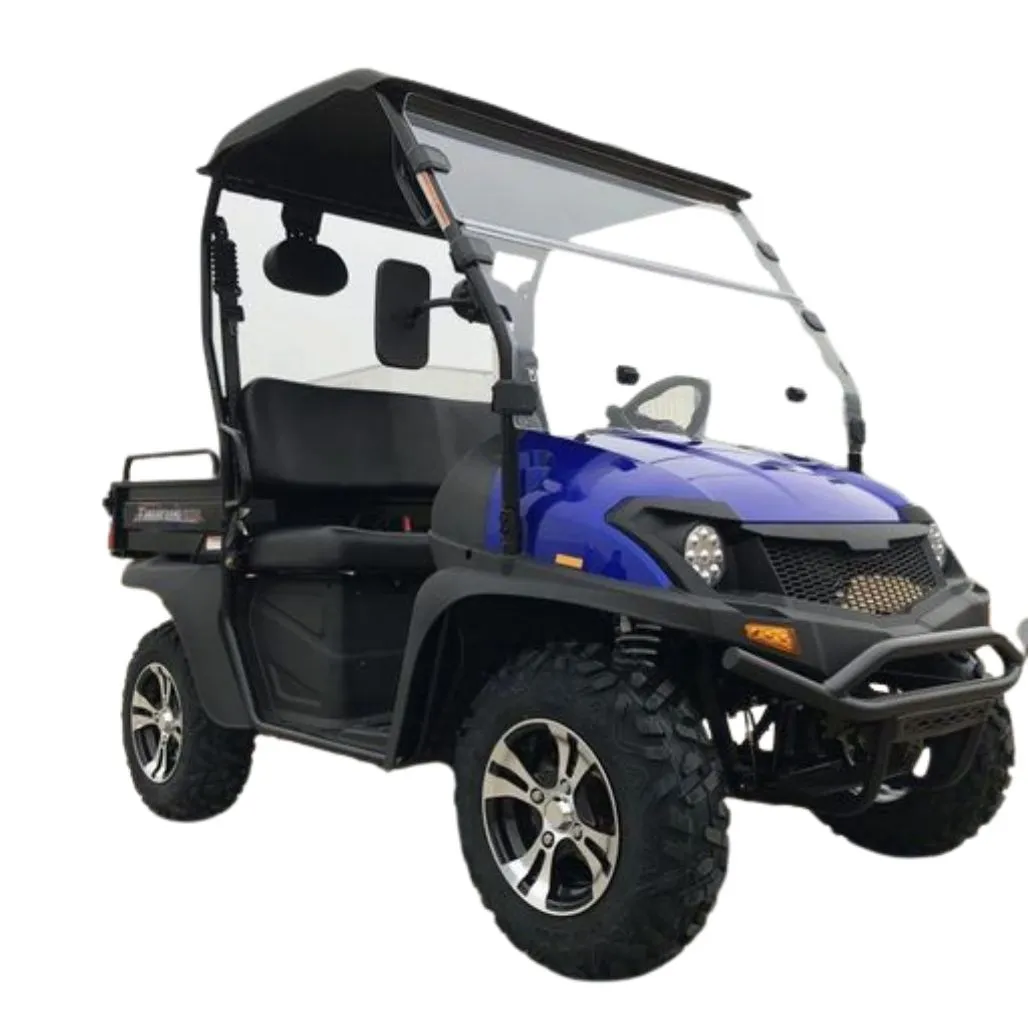

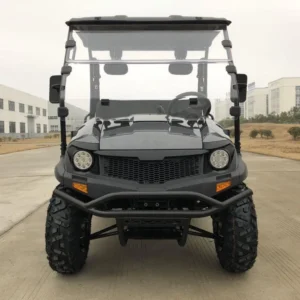

TrailMaster Taurus 200E U UTV w/ Bed (EFI)

Introducing the TrailMaster Taurus 200E U UTV w/ Bed (EFI), a versatile and powerful utility side by side perfect for both work and play! This UTV is powered by a robust 9.5 HP (EFI) air and oil-cooled 177cc GY6 engine with an internal reverse setup, ensuring reliable power transmission and higher efficiency. With its low gear mode, it boasts a 40% better climbing ability compared to non H/L versions, easily tackling slopes up to 30 degrees. The Taurus 200E U outperforms in torque and features four-wheel independent suspension for a smooth, comfortable ride. Its heavy-duty frame supports a net weight of 828 lbs and a maximum load capacity of 600 lbs, making it ideal for hauling heavy loads. Built to conquer any challenge, the Taurus 200E U is the ultimate utility vehicle for both work and leisure.

Taurus 200EU UTV Side by Side Key Features:

• Equipped with heavy duty steel dump bed
• Equipped with H/L gear, low gear mode has 40% better climbing ability than the non H/L version & can climb up to 30 degree slopes with ease.
• Air and oil cooled high performance 177.3 cc GY6 (EFI) Electronic Fuel Injection engine w/ internal reverse, rear shaft direct drive, more reliable power transmission, higher transmission efficiency;
• Four-wheel independent suspension for much better driving experience
• Heavy duty frame, net weight 828 lbs, max load 600 lbs
• Digital dashboard
• LED Hi/Lo head lights
• Rear view side mirrors
• Sporting steering wheel
• Turn signals
• Retractable safety seatbelt
• Big aggressive off road tires: F / R: 24 x 8-12 / 24 x 8-12
• Polished aluminum wheels
• Hard top
• Steel front bumper
• Cup holder
• 12-V outlet
• Adjustable heavy duty front and rear shock absorber
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• Large gas tank
• Horn

Engine Information

• EPA Certificated
• Electronic Fuel Injection
• Engine Type: 4-stroke, single cylinder, air and oil cooled
• Displacement: 177.3cc
• Compression Ratio: 8.8:1
• Max HP: 9.5HP
• Bore & Stroke: 62.5X57.8 mm
• Max Torque and Crankshaft Speed: 11.0/4500 N.m/(RPM)
• Nominal Power and Crankshaft Speed: 6.5/6500 kw/(RPM)
• Max Speed: 25mph
• Climbing Ability: 30 degrees
• Ignition: C.D.I
• Starting System: Electric
• Battery: 12V 9Ah
• Carburetor Brand: Deli
• Engine Oil: SAE 15W/40 General Information
• Transmission: Auto, L-H-N-R
• Drive Train: Shaft Drive; 2 WD:
• Drive Mode: Rear Shaft Drive, Rear differential
• Suspension, F/R: Front MacPherson, Rear Dual A-ARM
• Brakes, F / R: Both hydraulic brakes, Disc
• Tires, F / R: 24 x 8-12 / 24 x 8-12
• Fuel Tank Capacity: 4.8 gallons
• Wheels: Aluminum
• Weight, Gross 1018lbs/ net 828 lbs
• Max Load: 600 lbs
• Dump Bed Capacity: 220 lbs
• Towing Capacity: 200 lbs Dimension Information
• Wheelbase: 63”
• OA L x W x H: 108”x54”x74”
• Seat Height: 33”
• Min Ground Clearance: 11”
• Bump Bed: 26.4”X43.4”X9.5”
