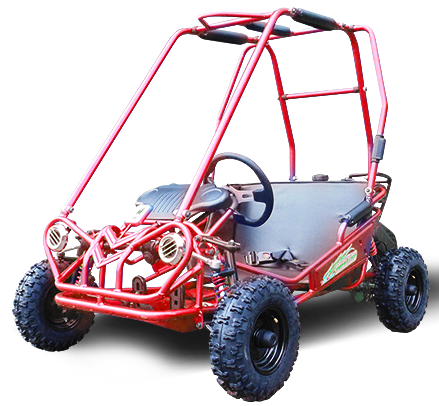

TrailMaster MINI XRS+ Kids Go Kart, 5.5hp Gas Engine, Dual Seats, Adjustable Pedals, Pull Start, Kids Ages 4-9 – Red

The MINI XRS+ Kids Go Kart is an ideal choice for young adventurers. Featuring a 5.5hp gas engine, dual adjustable seats, and adjustable pedals, safety is guaranteed despite its powerful performance capabilities. And starting up is a breeze thanks to its electric pull start. Hit the trails with the whole family and enjoy the ride.
The MINI XRS+ Kids Go Kart is perfect for your young racing enthusiast. With a powerful 5.5hp engine, dual seating, adjustable pedals and pull-start for easy operation, this go-kart gives your kids the power and safety they need to enjoy their ride. Equipped with a 2 wheel drive live axle and full front and rear suspension, your child can take on any terrain with confidence. 3 adjustable pedaling positions ensure maximum comfort, so that both short and tall riders can enjoy the ride.
This MINI XRS+ Kids Go Kart ensures safety and comfort with a seat belt design, fully enclosed bottom, side rails and padded upper brush guard to protect from debris, plus disc brakes and a speed governor to limit your child’s speed up to 12 MPHs. With its 5.5HP gas engine and adjustable pedals, your child will have a safe and fun ride!
Key Features
Powerful and reliable 4 stroke 5.5HP OHV engine
Rack and pinion steering
Two-wheel drive, live axle
Fully suspension front and rear
Safety belt
Adjustable pedals
Speed governor
Specifications
Engine System
EPA certified and CARB approved;
Engine type: 4-stroke, single cylinder,air cooled
Displacement: 163cc
Max HP: 5.5hp/3600rpm
Max torque: 8 lb ft/3600rpm
Bore x stroke: 2.6 x 1.8 inches
Max speed: 12.4mph
Climbing ability: 12 degrees
Starting system: Manual Pull Start
Battery: No
Carburetor brand: JF (RX)
Engine oil: SAE 15W-40
General Information
Clutch: Automatic
Driveline / Driving wheel: Chain /Dual wheel drive
Suspension, F / R: Dual A-arm /Double Oil Damped Shock
Brakes, F / R: No / Disc
Tires, F / R: 4.10-6 / 13 x 5-6
Fuel capacity: 1.2 gal
Weight, G.W. / N.W.: 209 / 176 lbs
Max load: 300 lbs
Dimension Information
Wheelbase: 42.6 inches
OA L x W x H: 58.7×38.2×48.8 inches
Height to seat: 7.5 inches
Min ground clearance: 3.5 inches
Pedal to seat back: standard: 30”;Pedal can also adjusted to 3” or 6”shorter.
Download Product Brochure
Assembly Guide
Owner’s Manual
Parts Manual
Chain Adjustment Guide
