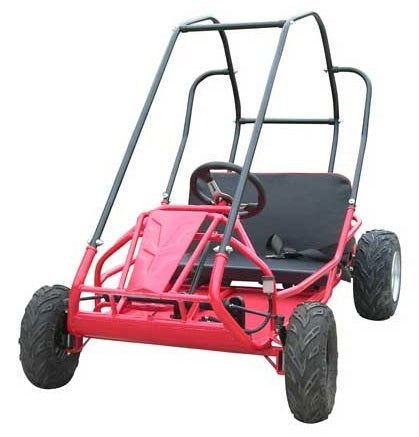

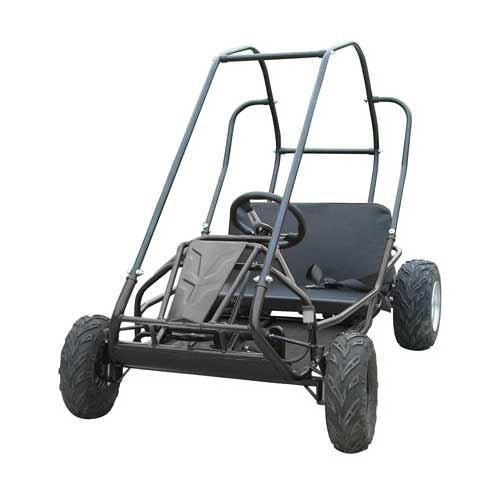

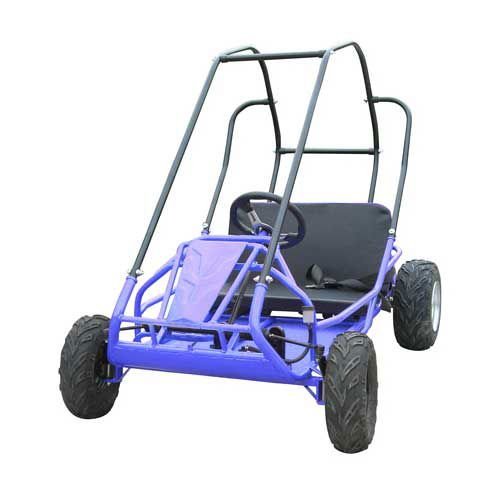

TrailMaster MID-Size XRS Go Kart 7.5hp, Pull Start, Kids Ages 7-12 (Number one Gokart Nationwide) – Red

The TrailMaster MID XRS Go Kart is designed for beginners, offering low maintenance, reliable performance and enjoyable riding.
Featuring a strong frame, double oil damped shocks, hydraulic brakes, two-wheel drive and a 7.5hp engine, it reaches speeds of up to 35 MPH and a 12-degree climb range for navigating most trails.
A simple design and improved turning radius provide added flexibility and protection from overhead brush.
Key Features
4-stroke 7.5HP OHV engine
Rack and pinion steering
Two-wheel drive, live axle
Full suspension front and rear
Safety belts
Adjustable pedals
Speed governor
Specifications
Engine Information
Engine type: 4-stroke, single cylinder, air cooled
Displacement: 200cc
Max HP: 7.5hp/3600rpm
Max torque: 9.6 lb ft/2500rpm
Bore x stroke: 2.6 x 2.1 inches
Max speed: 35mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Manual Pull Start
Carburetor brand: JF (RX)
Engine oil: SAE 10W-40
General Information
Clutch: Automatic CVT
Driveline / Driving wheel: Chain /Dual wheel drive
Suspension, F / R: Double Oil Damped Shock
Brakes, Rear Hydraulic brake, Disc
Tires, F / R: 145/70-6 / 16×6-8
Fuel capacity: 1 gal
Weight, G.W. / N.W.: 386 / 330 lbs.
Max load: 400 lbs.
Dimension Information
Wheelbase: 48.4 inches
OA L x W x H: 67×43.3×51.2 inches
Height to seat: 10.2 inches
Min ground clearance: 2.8 inches
Pedal to seat back distance: 31.5 to34
Download Product Brochure
Assembly Guide
Parts Manual
