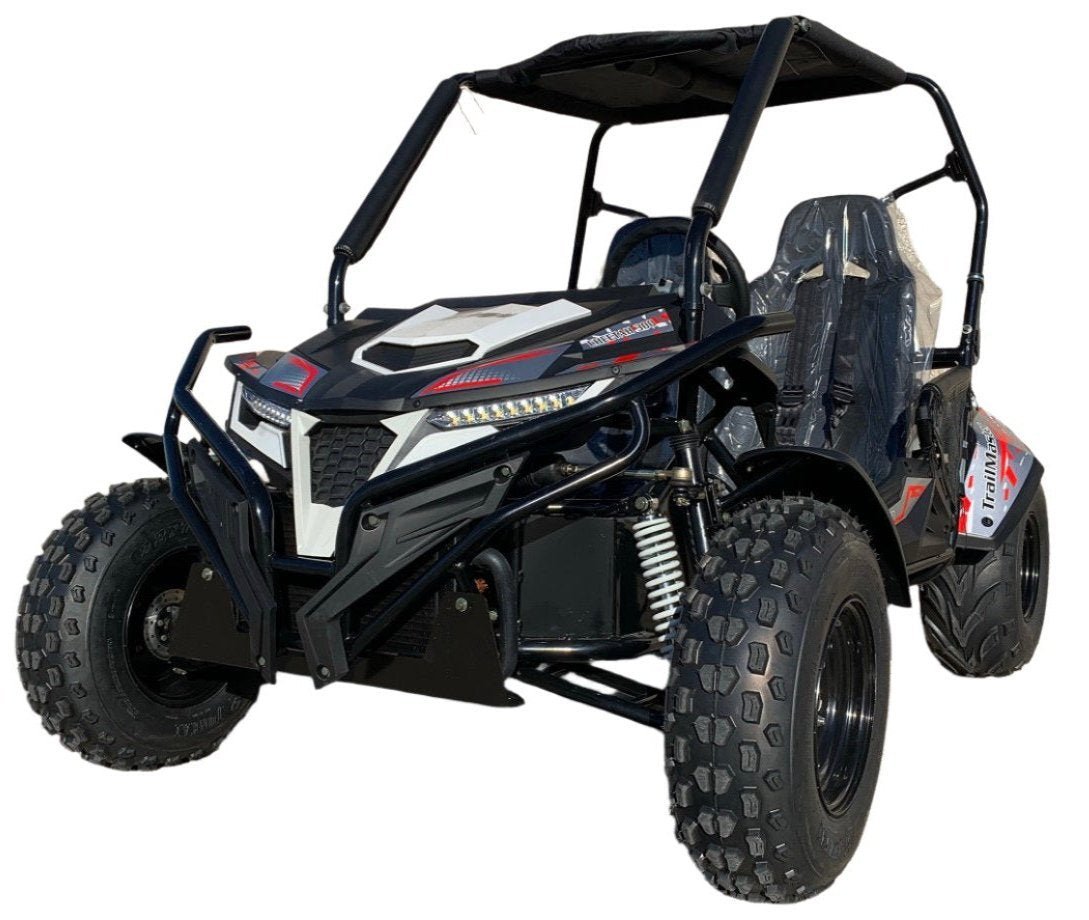

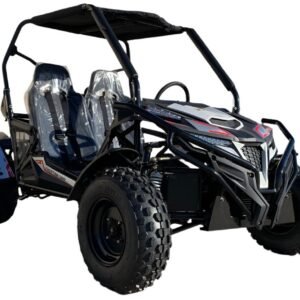

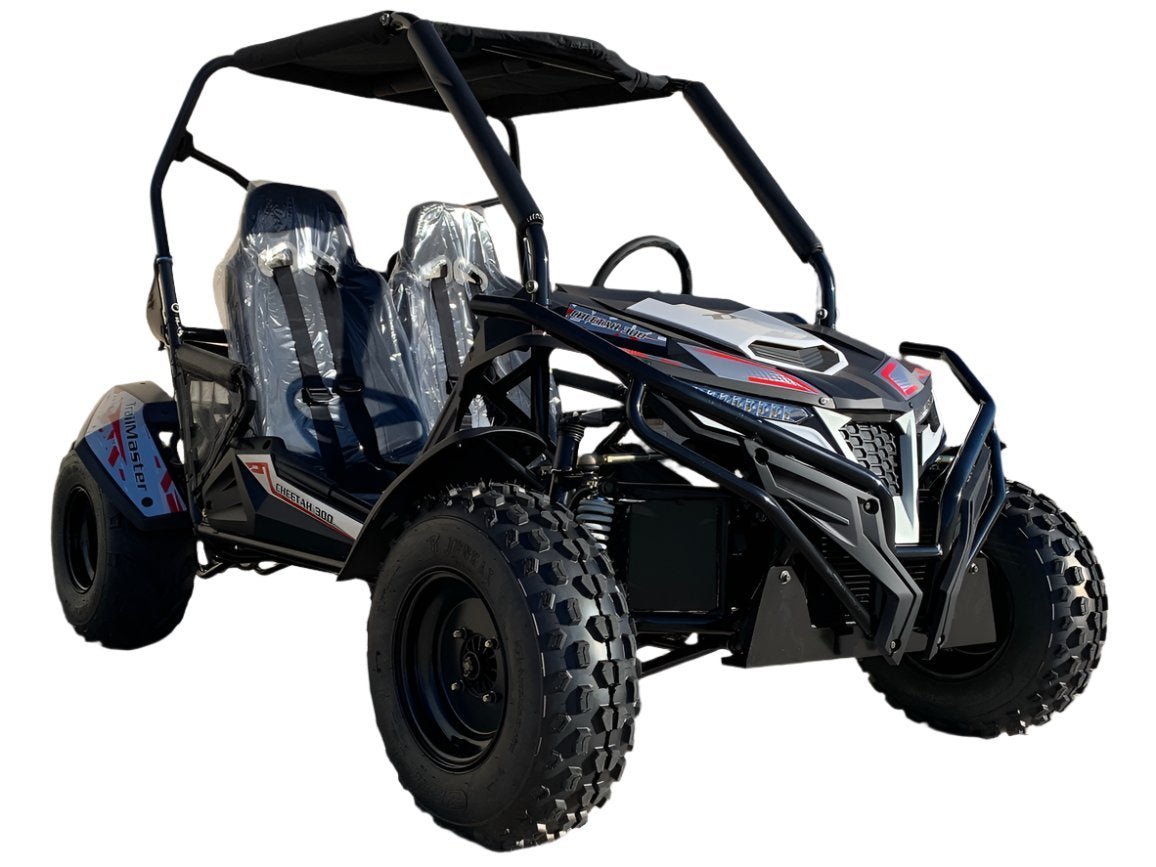

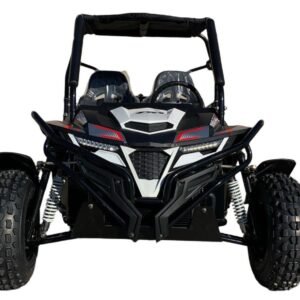

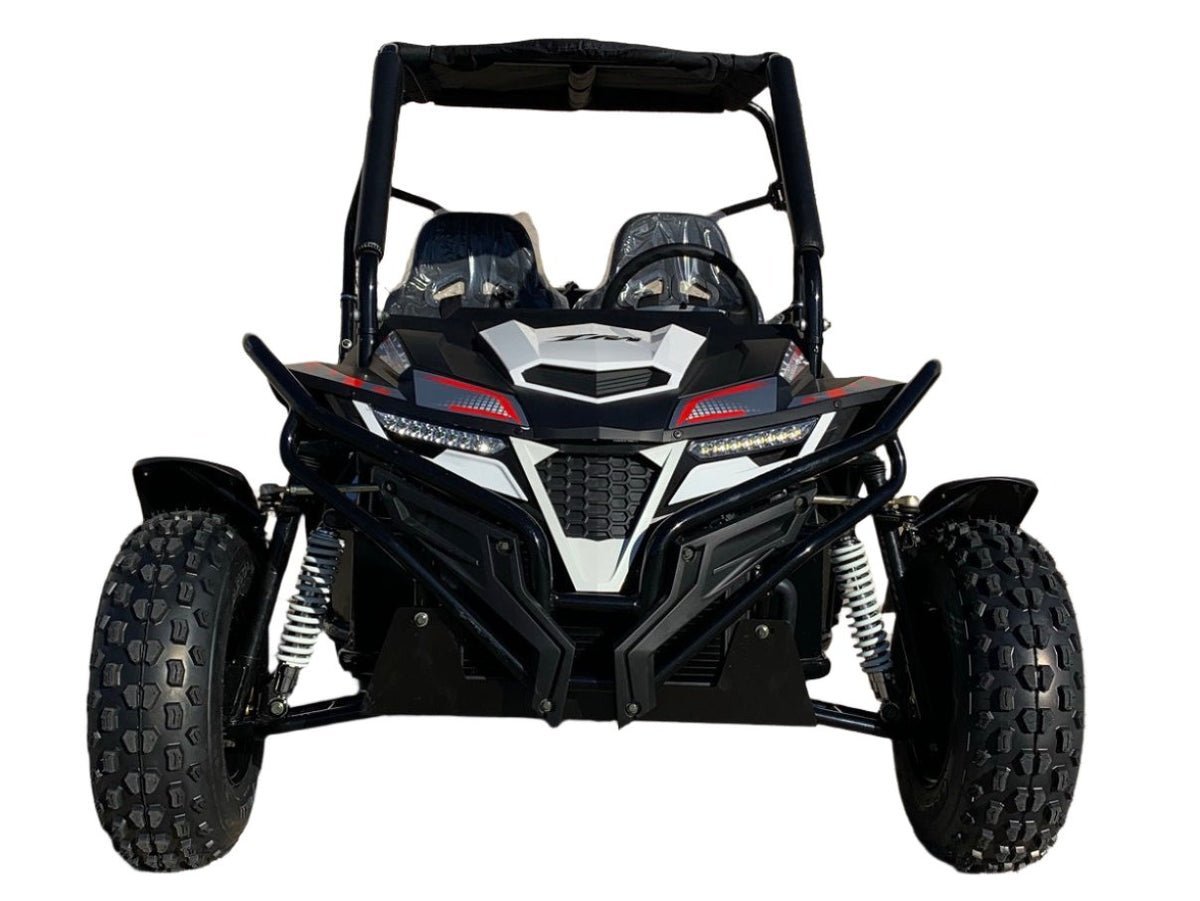

TrailMaster Cheetah 300E EFI UTV Go Kart, Shaft Drive, Liquid Cooled CVT Auto with Reverse – Red

DESCRIPTION
DETAILS
SUPPORT
Experience the newest addition to the UTV/go-kart world, the TrailMaster Cheetah 300E (Special) EFI. This machine lives up to its name with its sleek design and impressive performance. It combines the power and agility of a high-performance go-kart with the versatility of a utility vehicle. Upgraded from the popular Cheetah 200, the 300E boasts a 17hp Liquid Cooled 275cc engine and fuel injection for easy starting in any weather or altitude. Say goodbye to carburetor issues after periods of inactivity. The 300E also features extra-long, independent front swing arms, double ball joint and articulating rear suspension, and ample ground clearance for a smooth ride over rough terrain. With adjustable high back bucket seats and steering wheel, this UTV/go-kart is suitable for all shapes, sizes, and skill levels of your family’s adventurers.
FEATURES:
Reliable GY6 275.6cc Engine
Liquid Cooled
Shaft Drive
Keyed Electric Start
CVT Automatic Transmission with Reverse
Hydraulic Disc Brakes
Polished Stainless Steel Muffler
Heavy Duty Full Suspension
5-Point Safety Harness
4-Wheel Fenders
Adjustable Tilt Steering Wheel
Canopy Sunshade Top
Utility Rack
Central Rear View Mirror
Hi/Low Beam Headlights
Tow Hitch
SPECIFICATIONS:
Engine type: 275.6cc, 4-stroke, single cylinder, liquid cooled
Max HP: 17.4hp/7500rpm
Max torque: 22 lb ft/6000rpm
Bore x stroke: 2.26×2.28 inches
Max speed: 51.5 mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric
Battery: 12V 10Ah
Carburetor brand: Deli (Vacuum film)
Engine oil: SAE 10/15W-40
Clutch: Automatic CVT with reverse
Driveline / Driving wheel: Chain / Shaft drive
Suspension F / R: Double A-arm / swing-arm
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 20×7-8 / 22×10-10
Fuel capacity: 2.25 gal
Adjustable Driver Seat: Pedal to Seat Back adjusts from 38″ to 43″
Weight, G.W. / N.W.: 573 / 485 lbs
Max load: 500 lbs
Wheelbase: 59 inches
OA L x W x H: 85×53.1×57.5 inches
Height to seat: 13.8 inches
Min ground clearance: 6.7 inches
