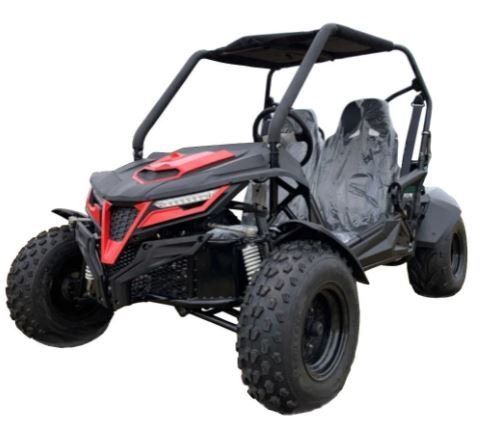

TrailMaster Cheetah 200 Full Size Buggy Go Kart, CVT Automatic with Reverse – Red

DESCRIPTION
DETAILS
SUPPORT
Adult Size, 200cc, Electric Start, Full Suspension, CVT Automatic with Reverse, Live Axle, Dual Wheel Drive, Dual Adjustable Seats, Disc Brakes, Fenders, Rack, Canopy Top, Lights, Tow Hitch. Add a Windshield and Top Lights.
FEATURES:
Reliable GY6 200 Engine
Keyed Electric Start
CVT Automatic Transmission with Reverse
Hydraulic Disc Brakes
Polished Stainless Steel Muffler
Heavy Duty Full Suspension
5-Point Safety Harness
4-Wheel Fenders
Adjustable Tilt Steering Wheel
Canopy Sunshade Top
Utility Rack
Central Rear View Mirror
Hi/Low Beam Headlights
Tow Hitch
SPECIFICATIONS:
Engine type: 200cc, 4-stroke, single cylinder, air cooled
Max HP: 10.8hp/7500rpm
Max torque: 12 lb ft/6000rpm
Bore x stroke: 2.26×2.28 inches
Max speed: 43.5 mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric
Battery: 12V 10Ah
Carburetor brand: Deli (Vacuum film)
Engine oil: SAE 10/15W-40
Clutch: Automatic CVT with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: Double A-arm / swing-arm
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 20×7-8 / 22×10-10
Fuel capacity: 2.25 gal
Adjustable Driver Seat: Pedal to Seat Back adjusts from 38″ to 43″
Weight, G.W. / N.W.: 573 / 485 lbs
Max load: 500 lbs
Wheelbase: 59 inches
OA L x W x H: 85×53.1×57.5 inches
Height to seat: 13.8 inches
Min ground clearance: 6.7 inches
