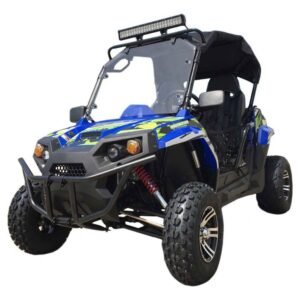

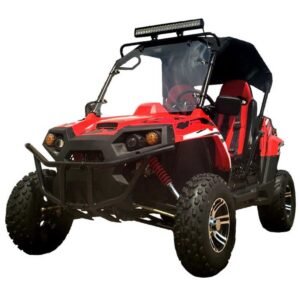

Introduce the younger generation to the driving world with the TrailMaster Challenger 200X UTV Side by Side! Perfectly proportioned for youth, it includes an adaptable steering column and reverse function. Keep kids safe with a top brush guard, sunshade canopy, protective side rails and sturdy nylon safety nets, and dual seats with seat harnesses. Its 4-stroke engine, automatic CVT transmission and dual rear wheel drive provide reliable power, while 4-wheel hydraulic assist disc brakes ensure secure stopping. Conquer any terrain with a full suspension system and all-terrain tires, available in multiple vibrant colors.
Features
Polished Aluminum wheels
Windshield
Front brush guard
Analog speedometer/odometer
Top LED hunting & Night Riding lights
Aluminum side mirrors
Bikini sunshade top
Side nets
Turn signals
Horn
Trailer Hitch
Electric start with kill switch
Fully automatic with reverse
High performance GY6 engine with internal reverse set up
Adjustable steering wheel
Large tires with 22X7-10 in the front and 22X10-10 in the back
Four-point safety seatbelt
Individual sporting seats
Adjustable driver seat: pedal to seat back adjustable from 38″” to 43″”
Adjustable heavy-duty front and rear shock absorbers
Rack and pinion steering
Front and rear hydraulic disc brakes
4-point rear swing arm
Parking brake
Large rear utility rack
Specifications
Model
Challenger 200X UTV
EPA Off-Road Approved
Yes
Engine Type
4-stroke, single cylinder, air cooled
Displacement
168.9cc
Max HP
11.1 hp/7500rpm
Max torque
8 lb ft/6000rpm
Bore x stroke
2.26×2.28 inches
Max speed
35 mph
Climbing ability
20-25 degrees
Ignition
C.D.I
Starting system
Electric
Battery
12V 10Ah
Engine oil
SAE 15W-40
Clutch
Automatic CTV with reverse
Driveline / Chain
Driven / Dual wheel drive
Suspension F / R
Independent Dual A-arm / Double Oil Damped Shock
Brakes, F / R
Both hydraulic brakes, Disc
Tires, F / R
22×7-10 / 22×10-10
Fuel capacity
1.75 gal
Weight, G.W. / N.W.
650 / 528 lbs
Max load
500 lbs
Dimension Information
Wheelbase
72 inches
OA L x W x H
98 x 48 x 60 inches
Height to seat
21 inches
Min Ground clearance
6.3 inches
