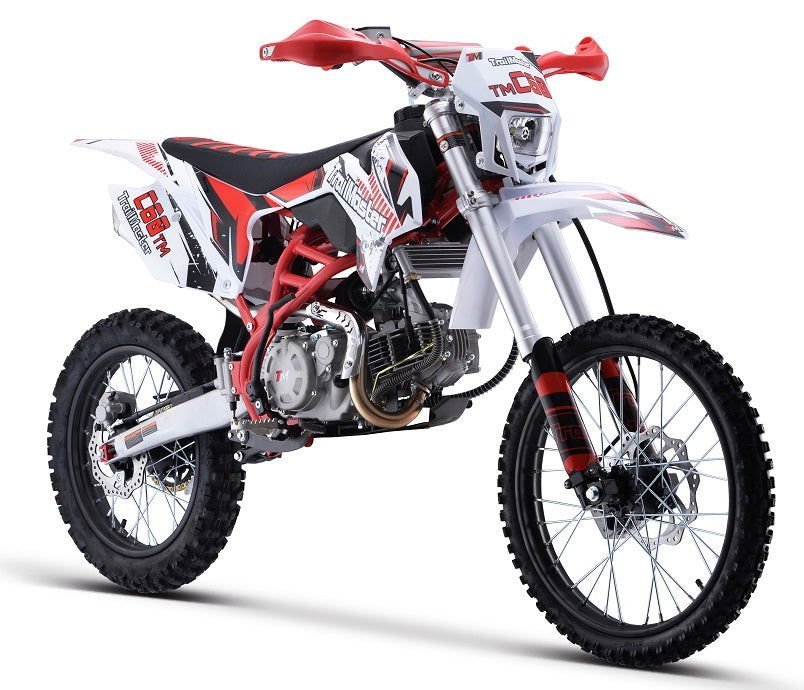

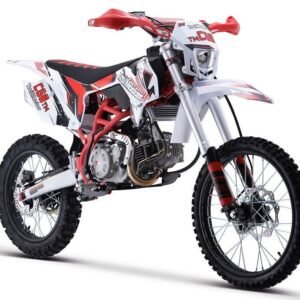

TrailMaster C60 160cc Dirt Bike, 4-Speed Manual (19/16) Wheels – Red

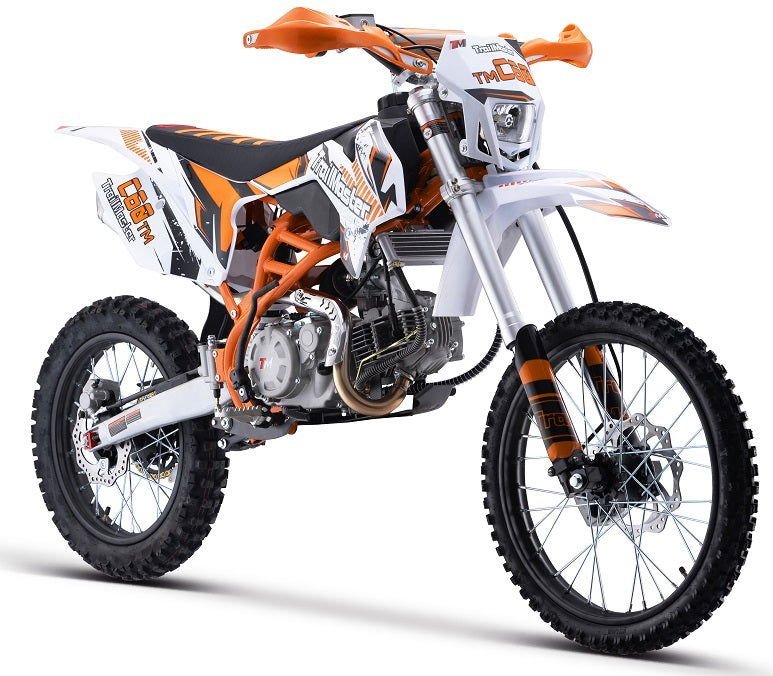

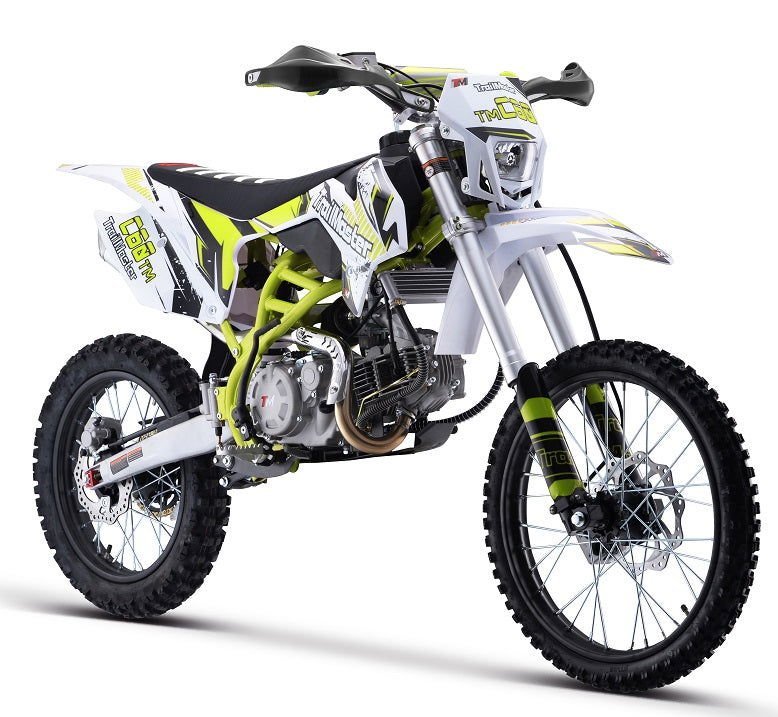

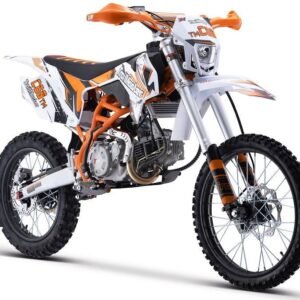

The TM C60 is a great mid size dirt bike. It has a high performance 156cc 4 stroke 14hp engine with kick start and a top speed of around 55 MPH and a seat height of 34.6”. It is available in red, green, and orange colors. The TM C60 features a 4-speed manual transmission with front and rear disc brakes, and inverted front shocks!
The bikes full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 190 pounds, the 156cc engine can propel the motorcycle to speeds of 55 miles per hour.
Features:
Powerful 160cc 4-stroke oil cooled engine
Kick start
4-speed, manual clutch
53.3“ wheelbase and 34.6” seat height
Front tire 19”/Rear Tire 16”
Hydraulic front and rear disc brakes
Aluminum handlebar
LED Headlight
Foldable Clutch & Brake Lever
Specifications
Engine System
Engine Type ZM-Single Cylinder, 4-Stroke, Oil Cooling
Displacement 156 ml
Max Power 10.5 /8500（1±5%） kw/r/min
Max Torque 11.5 /5500（1±5%） N.m/r/min
Compression Ratio 11.5:1
Bore and Stroke 60 x 55 (mm×mm)
Shift Type N-1-2-3-4, Four-Gear Manual Shift
Start Type Kick Start
Ignition CDI
Min. Fuel Consumption: ≤367g/kw.h
Engine Oil #： SJ-5W/40
Transmission Chain Drive; #428 & 120L Chain, 14/41T
Size Data
Overall Size (L x W x H) 78.7″*28.9″*44.5″(2000*735*1130MM)
Wheelbase 53.3″ (1355MM)
Seat Height 34.6″ (880MM)
Ground Clearance 13.4″ (330MM)
Fuel Capacity 7.5 L/2 Gal.
Tires FT: 70/100-19 – RR: 90/100-16 Knobby tires
Wheels Steel 1.6 x 19″ / 1.85 x 16″ Rims, Cast Hubs
Frame/Suspension/Brake System
Frame Twin Girders Steel Tube Frame
Front Fork Inverted 45*48-780mm Forks, Non-Adjustable
Rear Shock ￠10*￠11*410mm, Spring Per-load
Swing-Arm Steel Tube 14inch
Handlebar Steel Crossbar ,L=720mm; Dia=22mm
Front Brake Hydraulic Twin Piston Caliper, 220mm Disc
Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
Exhaust Steel Pipe with catalyst converter(EPA Standard)
Brake & Clutch Lever Foldable
Seat Ribbed TrailMaster Seat
Headlight LED
Packing and Loading
Packing Size(inch) 66×16.3×31.3 inch
N.W/LBS 190 LBS
G.W/LBS 227 LBS
