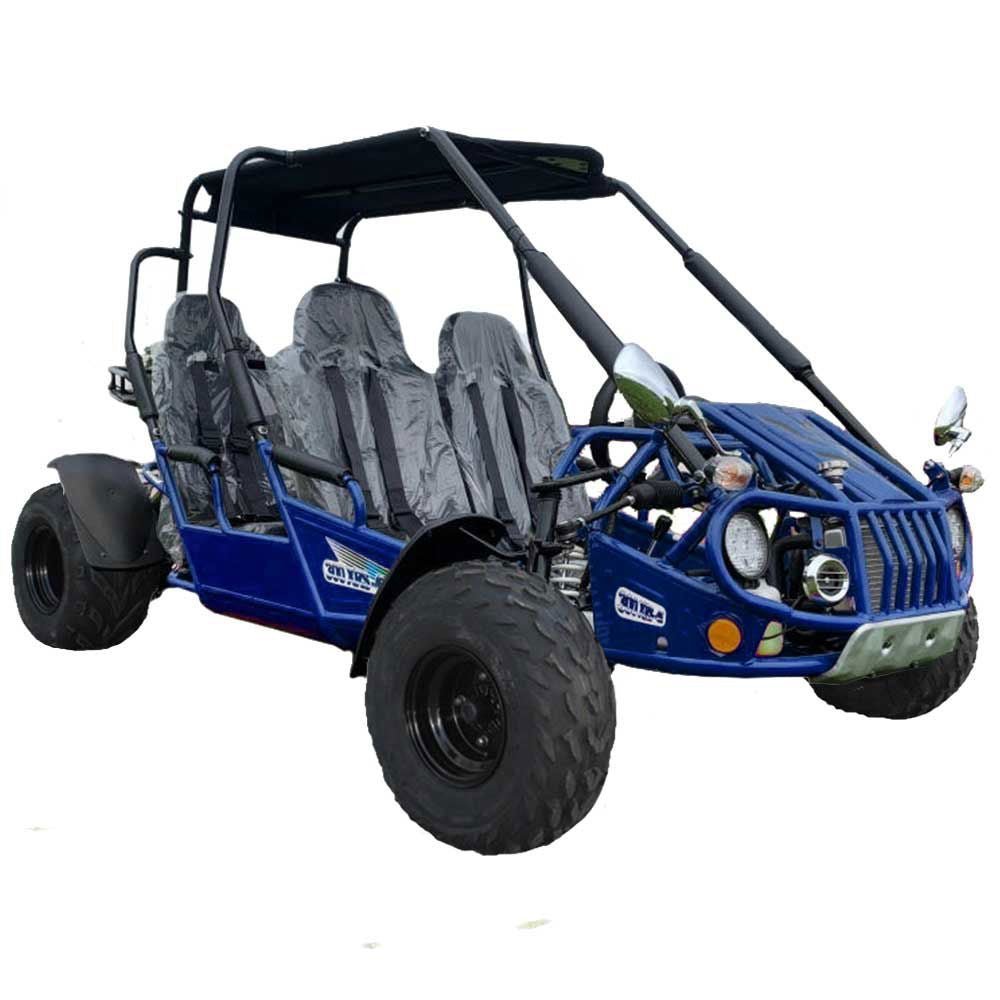

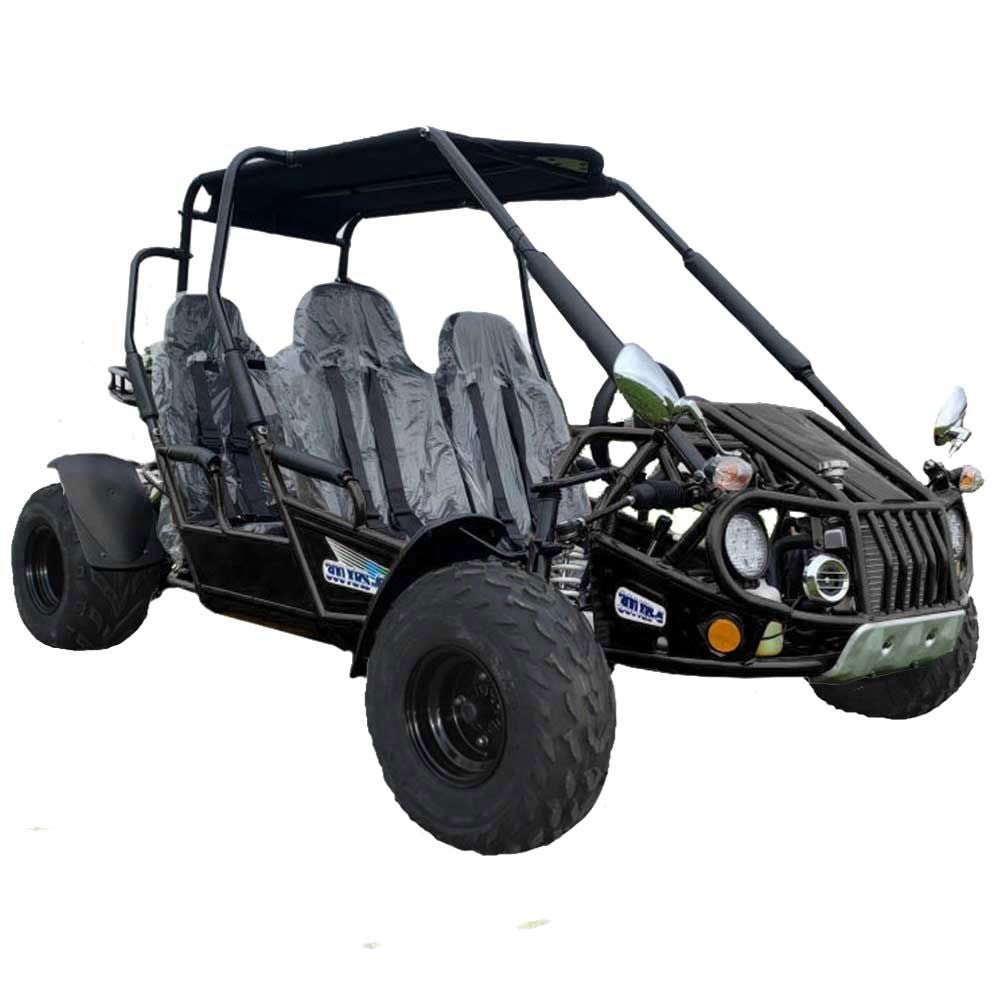

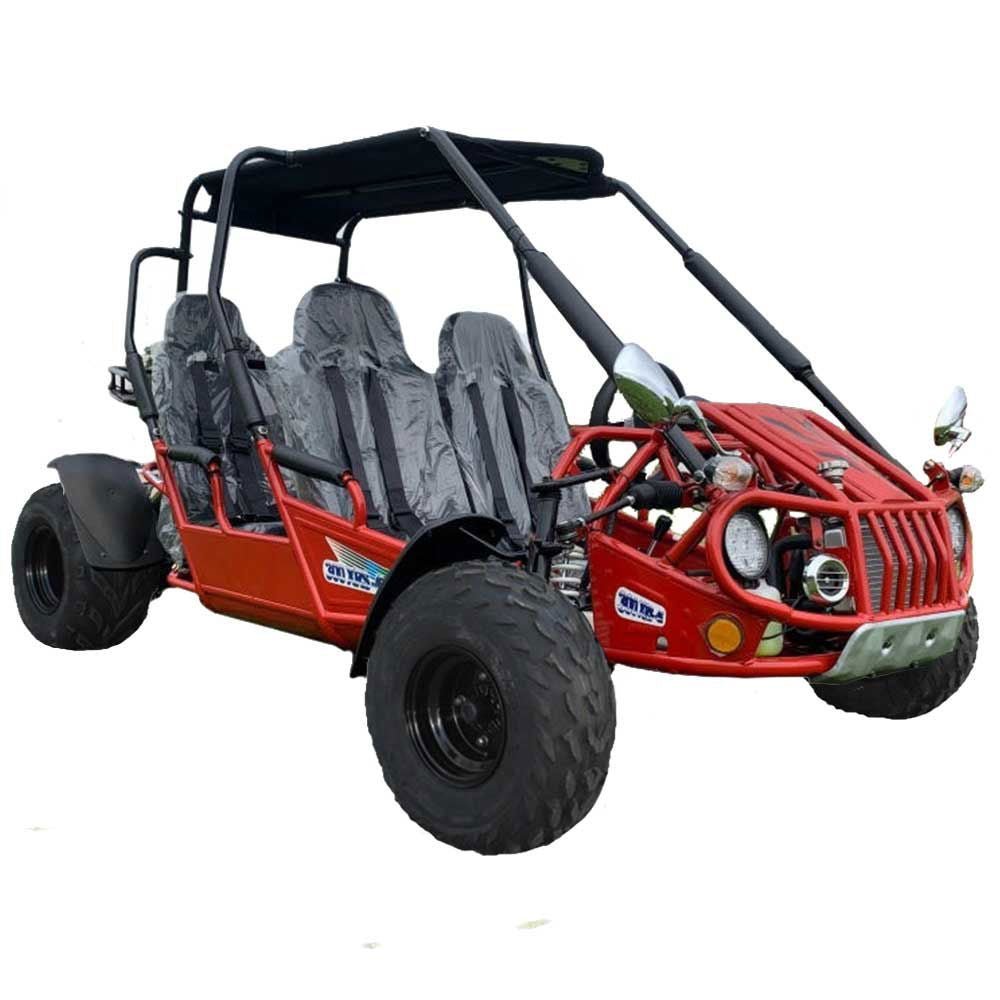

The TrailMaster 300-XRS4E is an impressive 4-seater go kart, powered by an 18 HP 300cc CVT fully automatic liquid-cooled engine with the convenience of EFI. This powertrain provides an extra boost in torque and fuel efficiency compared to conventional 150cc engines. Plus, the EFI system makes it easier to start the vehicle in cold weather and at high altitudes. Enjoy a powerful and reliable go-karting experience with the 300-XRS4E.
The 300-XRS4E Buggy Go Kart is built for heavy duty applications and can accommodate up to 800 lbs of load. Its adjustable driver and passenger seats can fit up to 6’2″-tall people and are separated by a 26″ distance. Its 20″ x 7-8″ and 21″ x 10-10″ tires ensure powerful acceleration to carry four passengers.
Features
18 HP Powerful 300cc CVT fully automatic with reverse engine, Liquid cool
EFI operates under any weather and at any altitude
Heavy duty frame, net weight 608lbs, max load 800 lbs, adult size 4-seat go kart
New gear ratio set up offers maximum low-end torque
Digital speedometer/odometer
Stainless steel performance muffler
Five-point safety seatbelt
LED headlight
Adjustable steering wheel
Adjustable front driver and passenger seat: pedal to center seatback adjustable from 36” to 43”, fits driver/passenger up to 6’2 in height
Front seat to rear seat distance 26inches, fits passengers up to 6’2 in. height
Handled extremely well on trails, only Min. 229″ turning radius.
Electric start with kill switch
Aluminum side mirrors
Sporting steering wheel
Turn signals
Individual sporting seats
Polished stainless steel muffler
Big tires: F / R: 20 x 7-8 / 21 x 10-10
Bikini sunshade top
Adjustable heavy-duty front and rear shock absorber
Rack and pinion steering wheel
Front and rear hydraulic disc brake
4-wheel fenders
Trailer hitch
Large gas tank
Horn
Padding over roll cage
Specifications
Engine Information
Engine type: 4-stroke, single cylinder, air-cooled
Displacement: 275.6cc
Output Max.: 17.4HP/6500rpm
Max torque: 16 lb ft/5000rpm
Bore x stroke: 2.85 x 2.63 inches
Max speed: 45mph
Climbing ability: 15 degrees
Min turning radius: 229 inches
Ignition: ICM
EFI Ignition Module: RM1A1
Starting system: Electric Start
Battery: 12V 10Ah
Gear oil: MoS2&W-2WD-4D
General Information
Clutch: Automatic CTV with reverse
Driveline: Driving wheel Chain /Dual wheel drive
Suspension: F / R – Dual A-arm /swing-arm
Brakes: F /R Hydraulic brakes, Disc
Tires: F / R 20 x 7-8 / 22 x 10-10
Fuel capacity: 2.25 gal
N.W. /G.W./ Shipping W: 608lbs /758 lbs / 950 lbs
Max load: 800 lbs
Dimensions
Wheelbase: 84.5 inches (2.23m)
OA L x W x H: 116.1×54.5×59.2inches
Crate size: L x W x H 120x 45 x 28inches
Height to seat: F 17 inches
Height to seat: R 18.2 inches
Distance between F&R seat: 25.6”
Min. ground clearance: 15.8”
Pedal to center seat back: 36 to 43”
