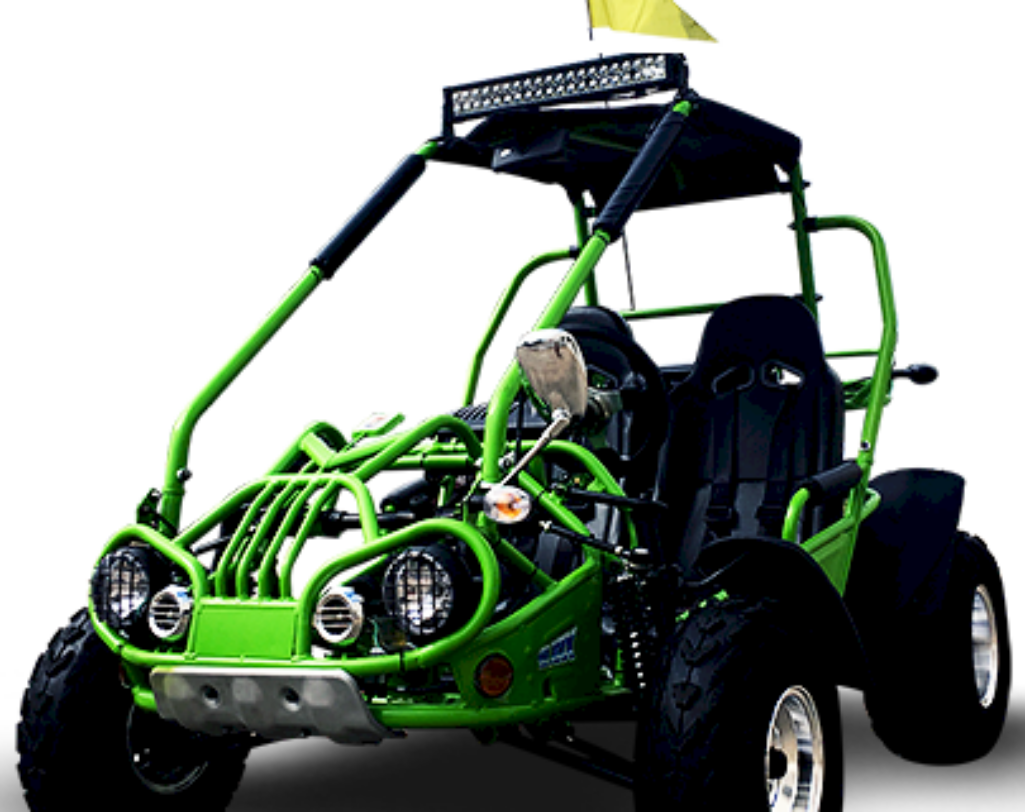

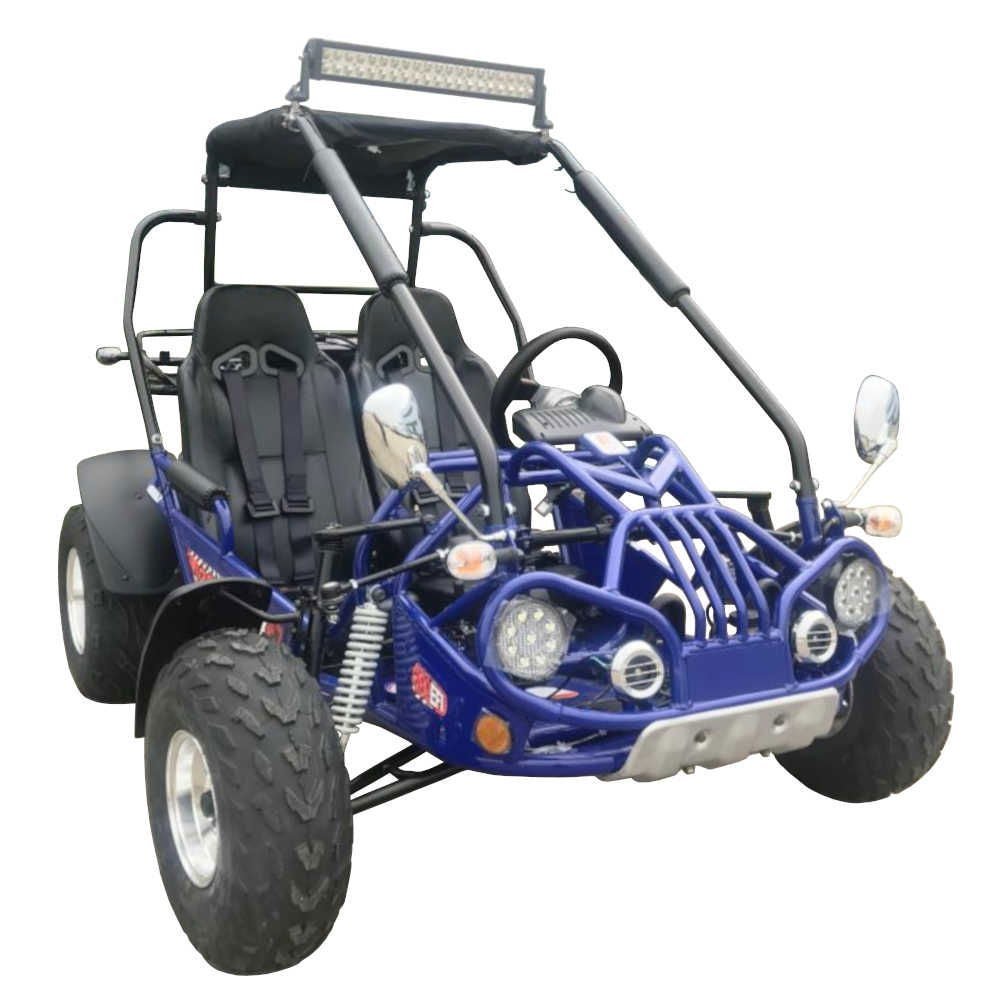

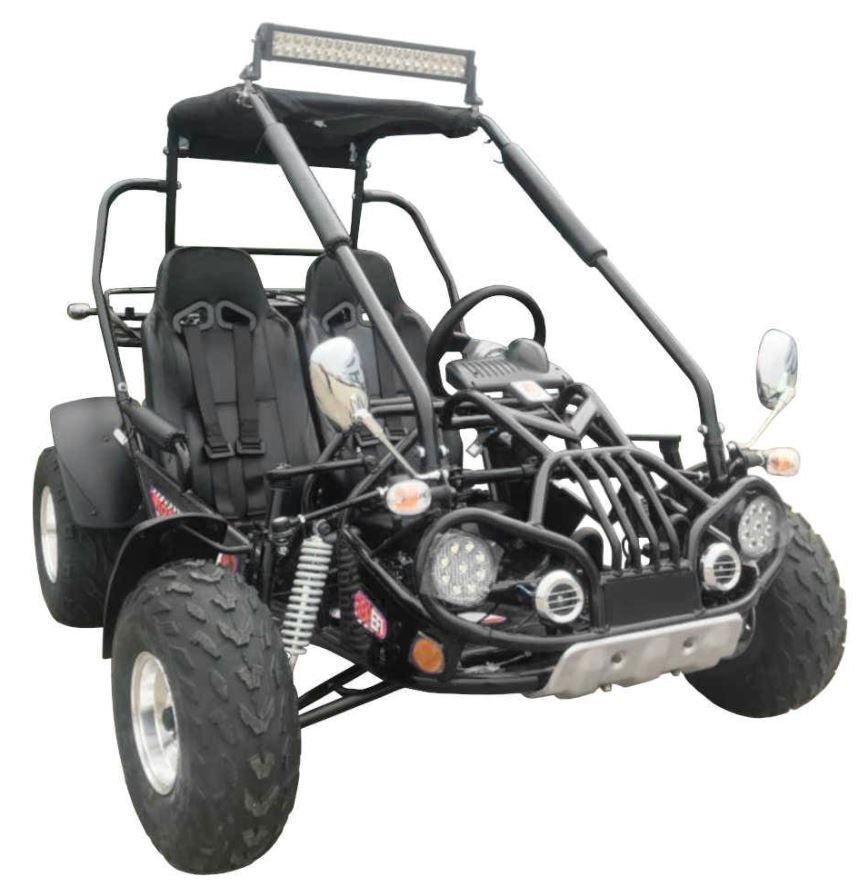

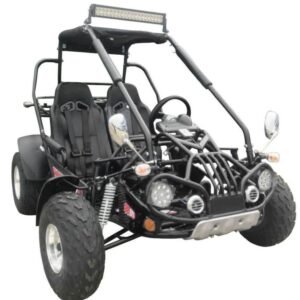

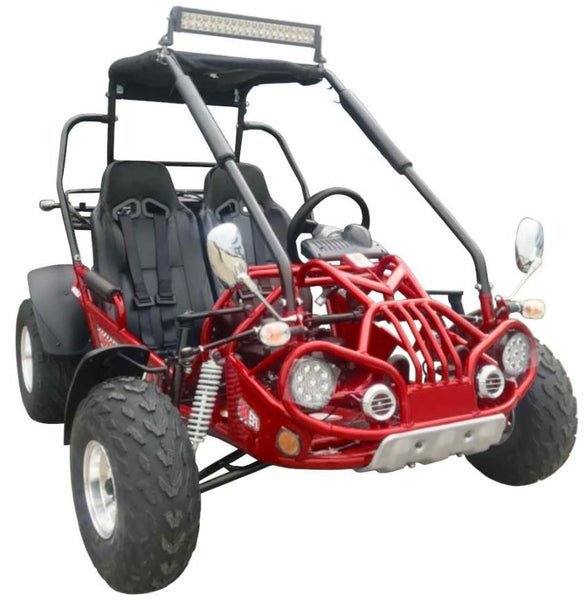

TrailMaster 200E XRX (EFI) Fuel Injection Deluxe Buggy Go Kart, Alloy Wheels, Lights, Turn Signals – Red

DESCRIPTION
DETAILS
SUPPORT
EFI Fuel Injection. The TrailMaster 200E XRX adult size kart is the deluxe model in the 200 series. Loaded with all the most requested features, this model is a winner. Great looks, outstanding performance, extremely competitive pricing and world class support…it doesn’t get any better than that. DELUXE MODEL Extras Include: Polished Aluminum Wheels, Digital Speedo, Top Bar Light, Turn Signals, Adjustable Steering Wheel, Trailer Hitch and Mirrors.FEATURES INCLUDE: Electric Start, FULLY LOADED Adult-Sized Buggy Go Kart, Full Suspension, CVT Automatic with Reverse, Live Axle, Dual Wheel Drive, Dual Adjustable Seats, Disc Brakes, Fenders, Rack, Canopy Top, Lights, Tow Hitch.
FEATURES: .
Alloy wheels with 22X7-10 front and 22X10-10 rear aggressive tires
Top LED light bar
Nitrogen adjustable front and rear shock
Upgraded racing seat belt
Digital speedometer/odometer
Aluminum side mirrors
Turn signals
Sporting steering wheel
Stylish design
Exciting graphics
Five-point safety harness
Electric start with kill switch
Fully automatic with reverse,
high performance 200cc GY6 engine with internal F-N-R
Adjustable steering wheel
Individual sports seats
Polished stainless steel muffler
LED headlight
Bikini sunshade top
Adjustable driver seat: pedal to seat back adjustable from 41 to 46
Central rear-view mirror
Rack and pinion steering wheel
Front and rear hydraulic disc brake
4-point rear swing arm
Parking brake
4-wheel stylish fenders
Trailer hitch
Large rear utility rack
Large gas tank
SPECIFICATIONS:
Engine type: 200cc, EFI 4-stroke, single cylinder, air cooled
Max HP: 12.3hp/7500rpm
Max torque: 11 lb ft/6000rpm
Bore x stroke: 2.26×2.28 inches
Max speed: 47.5 mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric
Battery: 12V 10Ah
Carburetor brand: Deli (Vacuum film)
Engine oil: SAE 10/15W-40
Clutch: Automatic CVT with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: Double A-arm / swing-arm
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 22×7-10 / 22×10-10
Fuel capacity: 2.25 gal
Adjustable Driver Seat: Pedal to Seat Back adjusts from 38″ to 43″
Weight, G.W. / N.W.: 573 / 485 lbs
Max load: 500 lbs
Wheelbase: 59 inches
OA L x W x H: 85×53.1×57.5 inches
Height to seat: 13.8 inches
Min ground clearance: 6.7 inches
