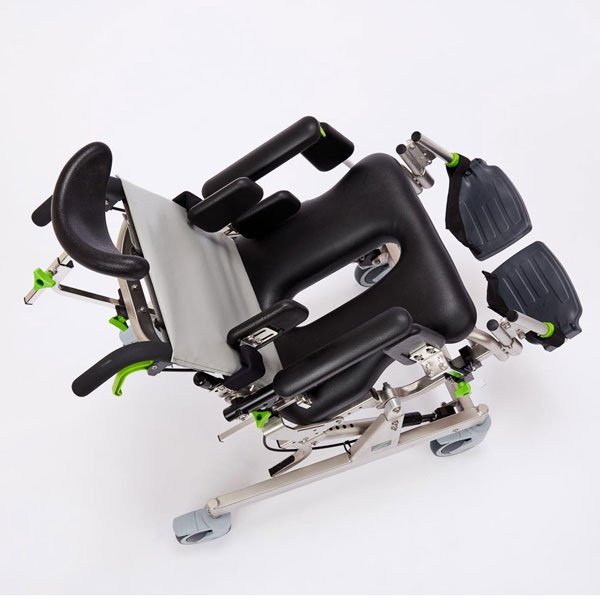

RAZ has created the most configurable, adjustable and comfortable rehab shower commode chairs on the market today. The chairs were developed with meticulous attention to detail – from the electro-polished stainless steel frames with easy access for users and caregivers, to the precisely contoured seats molded with soft integral skin foam. Only RAZ offers a commode seat that adjusts to accomodate pelvic rotation with a centering of the aperture around the user′s ischial tuberosities.
RAZ rehab shower commode chairs provide positioning, pressure reduction, and are ideal for the rehab client and the institutional user.
Features

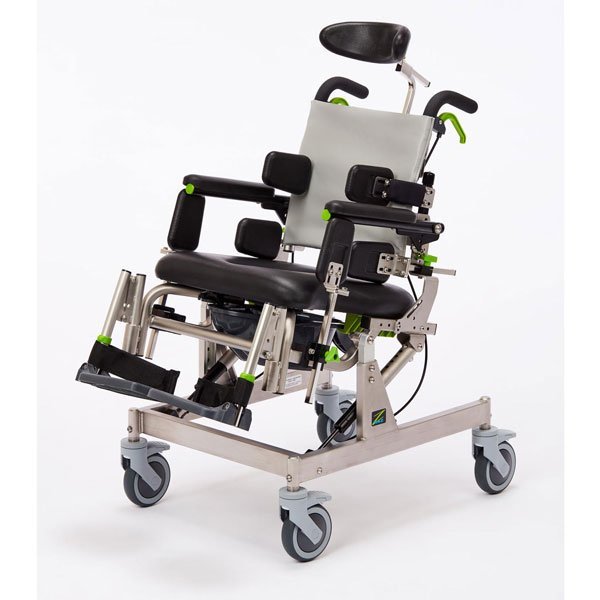

RAZ-CAT Compact Shower Commode – Standard Base Frame with 18″W seat frame (fits over standard toilet bowls 15.75″W or less), with 40degrees of tilt range, adjustable seat depth and back angle, four dual-locking 5″casters, molded headrest (10″x4″), headrest fixture and commode pan – Z7MFX12N Footrests are included
Specifications
| SPECIFICATION | Z303 |

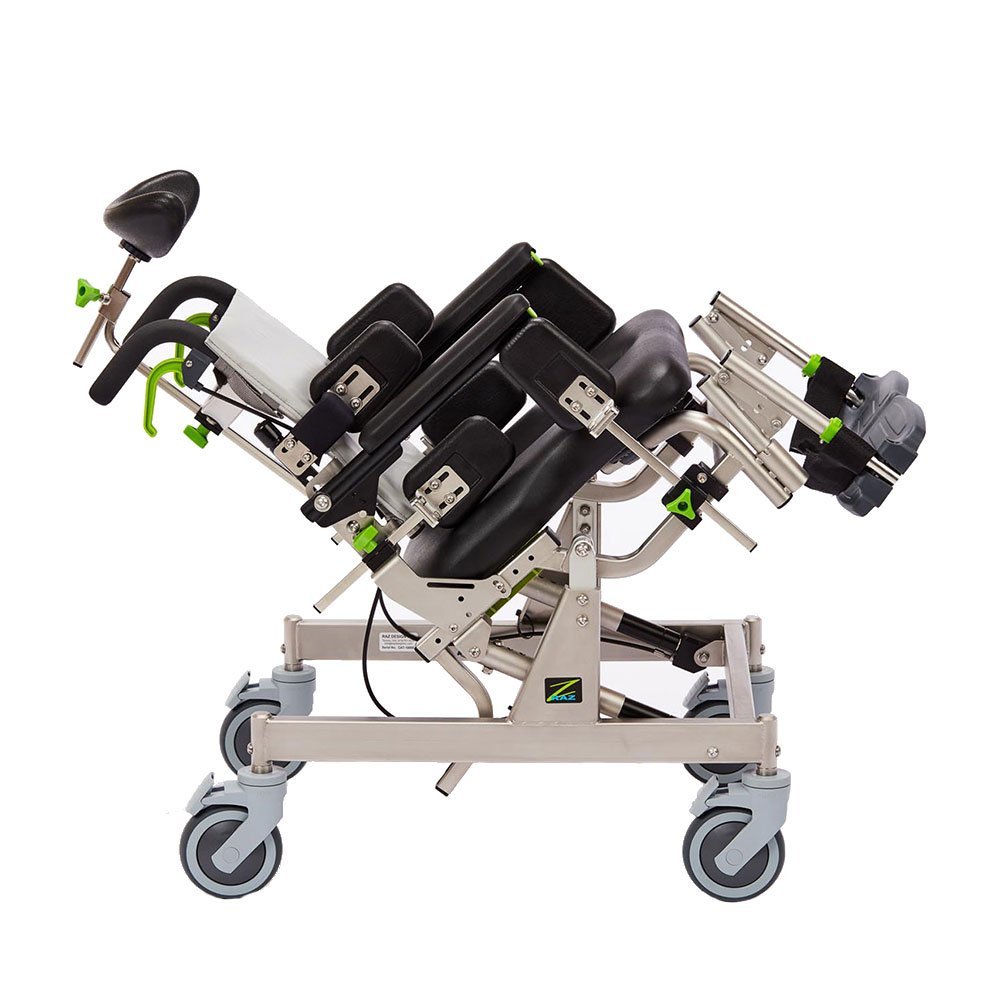

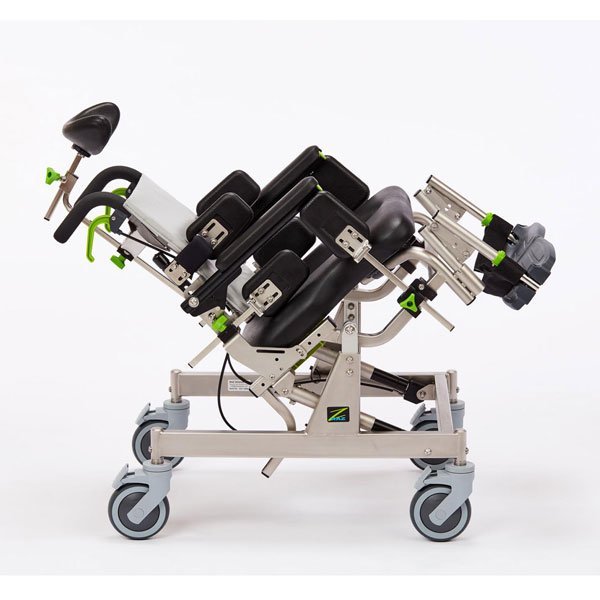

| TILT FUNCTION | Gas spring assisted, up to 40° tilt range |
| SEAT WIDTH (standard) | 18″ |
| SEAT DEPTH (adjustable) | 11″, 12″, 13″, 14″, 15″, 16″ |
| SEAT HEIGHT (front seat to floor) |
21″ – 25″ |
| TOILET CLEARANCE WIDTH (standard) | 15.75″ |
| BACK HEIGHTS – Multi-Position Back (From top of back upholstery to top of the seat) |
5″ (Z5B845 / Z5B865 / Z5B885) 18″ (Z5B848 / Z5B868 / Z5B888) |
| ARMREST HEIGHT (Armpad to top of Seat) |
6″ – 8″ (15″ Back Height) 7″ – 9″ (18″ Back Height) |
| WIDTH BETWEEN ARMPADS | 14.75″ (14″ Back Width) 16.75″ (16″ Back Width) 18.75″ (18″ Back Width) |
| LATERAL SUPPORT (adjustment range) |
0 – 2.5 offset (each side) * 2″ vertical 1″ fore/aft +-5° pad angle * Trunk width=(Back width – Offset) |
| FOOTREST ADJUSTMENT (seat to floor height) |
12″ – 16″ (Z7MFX 12) 14″ – 18″ (Z7MF X12 w/Z 7FREXT) |
| CASTER TYPE AND SIZE | Dual-locking 5″ casters (x4) |
| OVERALL WIDTH | 21.8″ (14″ & 16″ back width) 23″ (18″ back width) |
| OVERALL LENGTH WHEN UPRIGHT Without footrests : With footrests: |
31.9″ 34.9″ |
| OVERALL LENGTH WH EN TILTED Without footrests: With footrests: |
37.4″ 44.4″ |
| WEIGHT CAPACITY | 250 lbs. |
| PRODUCT WEIGHT | 64 lbs. |
| FRAME MATERIAL AND HARDWARE | Stainless Steel |
