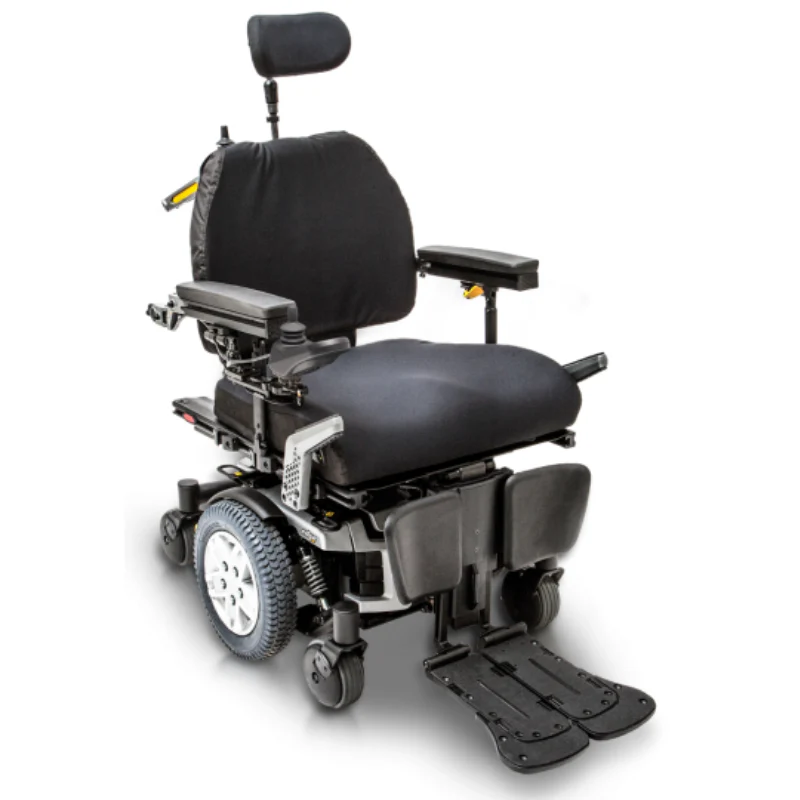

Quantum Rehab Bariatric Power Wheelchair Q6 Edge HD
The Q6 Edge HD is a high-powered, mid-wheel drive power chair that combines the best of both worlds in terms of design and performance. The Q6 Edge HD comes with standard 4-pole motors and ATX Suspension, which provides enhanced performance over more varied terrain. The chair also accepts a complete range of seating and electronics options, making it truly customizable to the needs of each individual user. One of the advantages of Q6 Edge HD is its weight capacity of 32 stone (204 kg) and seat widths of up to 32 inches for greater comfort.
Quantum Rehab Bariatric Power Wheelchair Q6 Edge HD With TB3 Seating & NE+ Controls

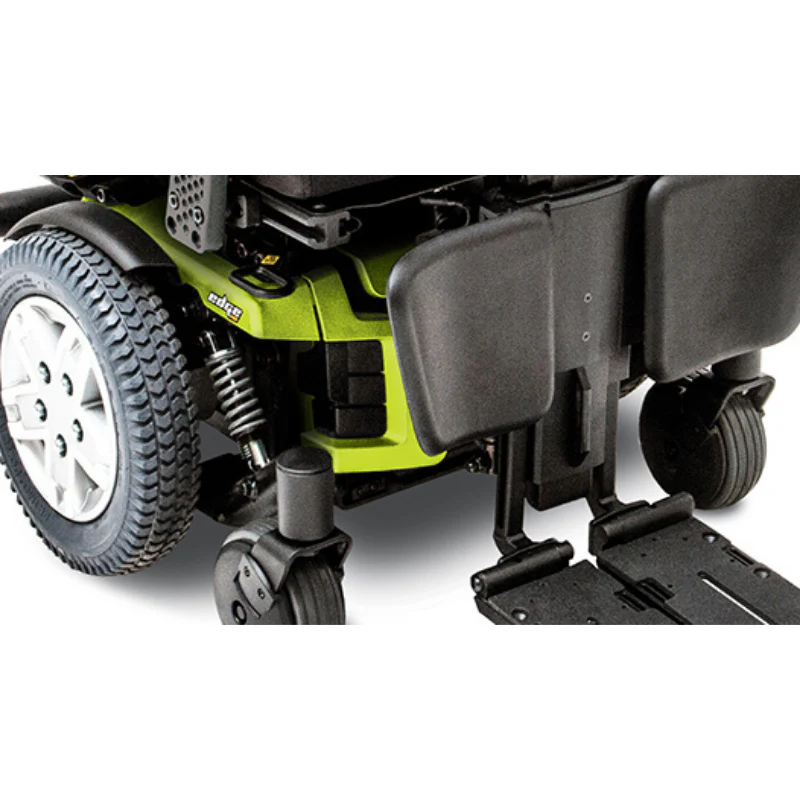

The Q6 Edge HD is Quantum’s bariatric power chair that was made with a powerful Edge power base. You will receive a great modern mid-wheel 6 drive design sturdy power chair with standard 4-pole motors, and ATX Suspension. ATX Suspension (Active-Trac®) incorporates front OMNI-Casters and semi-independent rear caster beam for enhanced performance over more varied terrain. This makes Q6 Edge HD maneuverable and a great option for outdoor and indoor use. The Q6 Edge HD is created to meet the performance needs of active users.
The Q6 Edge HD accepts a complete range of seating and electronics options to deliver exceptional rehab capability. It is configurable with Tru-Balance 3 seating features and advanced NE+ controls.
Available with Q-Logic 2 Drive Control System, which offers Bluetooth access to a computer, tablet, and phone functions. One of the advantages of Q6 Edge HD is its weight capacity of 32 stone (204 kgs) and seat widths of up to 32 inches for greater comfort.
Powered positioning options to choose from are available, such as the iLevel lift that allows you to drive at a walking pace whilst elevated up to 45° of powered tilt, and 175° lie-flat recline.
Features:
- Modern Design.
- Perfect maneuverability.
- Contemporary colour options.
- TRU-Balance 3 Seating System.
- 2” x 6” Inches Front & Rear Castors, Flat Free.
- Height Adjustable Removable Armrests.
- Easy Seat Width Adjustment.
- 3” x 14” Inches Flat Free Drive Tyres.
- Centre Mount Foot Platform.
- Easy Seat Depth Adjustment.
- Synergy Spectrum Foam Seat Cushion.

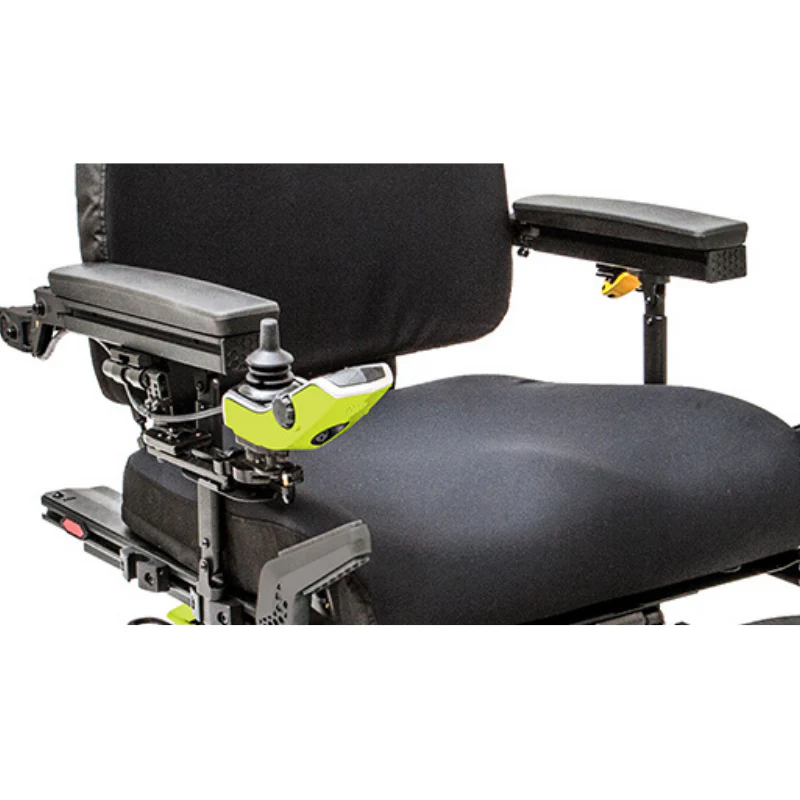

- NE+ Joystick.
- ATX Suspension System.
- Tie-Down System for Transport.
- Crash Tested.
- It comes complete with the full Mobility World support service.
| COMPONENT WEIGHTS (BASE) | 65 kgs (143.5 lbs) |
|---|---|
| COMPONENT WEIGHTS (BATTERIES) | 23.6 kgs (52 lbs each) |
| WEIGHT CAPACITY | 204 kgs (32 stones 2 lbs) with TRU-Balance 3 HD Power Tilt |
| MAXIMUM SPEED | Up to 4 mph (6.4 kph) |
| MAXIMUM RANGE | 20 miles (32 kms) |
| LENGTH (with front rigging) | 124.75 cms (49.1” Inches) |
| LENGTH (without front riggings) | 90.4 cms (35.6” Inches) |
| WIDTH | 66.7 cms (26.25” Inches) |
| GROUND CLEARANCE | 8.9 cms (3.5” Inches) at motor, 7.6 cms (3” Inches) at the base frame and 6.35 cms ( 2.5” Inches) at caster pivot |
| TURNING RADIUS | 50.2 cms (19.75” Inches) |
| DRIVE WHEELS | 35.5 cms (14” Inches) pneumatic or solid available |
| CASTER WHEELS | Front: 15.2 cms (6” Inches) solid and Rear: 15.2 cms (6” Inches) solid |
| SUSPENSION | ATX Suspension (Active-Trac® with extra stability) |
| DRIVETRAIN | Two motor, Mid-wheel 6® drive |
| BRAKES | “Intelligent Braking” electronic regenerative, disc park brake |
| BATTERIES | Two 12-volt, deep-cycle 73 Ah Batteries |
| BATTERY CHARGER | 8-amp, Off-board |
| MAXIMUM OBSTACLE CLIMBING ABILITY | 8.9 cms (3.5” Inches) |
